1.2GHz 5inch Mini Wireless Camera DVR Wireless FPV Monitor With Sunshade
TEL12GDV is our latest hot FPV monitor DVR . It improved on the basis of MINISPYTP43H, which comes with delicated outward and practical function. This new mini wireless fpv dvr monitor added sunshade and auto scan & lock channels function, now it is a wonderful outdoor wireless monitor for FPV, RC hobby ,quadcopter and drones
Feature: * 5" HD snow Remote control style FPV monitor, no screen,track your plane anytime,don't need to worry about lossing trace for blue screen; * 24chs 1.2Ghz wireless receiver ,one monitor for multiple plane with different frequency; * Press one button , then it begin to scan and lock channels Automically, so easy. * Support 32GB SD card storage wireless fpv dvr- RC plane black box:record all details and amazing video moment. * Professinal sunshade +3200mAh battery, 10hous working time ,enjoy your outdoor pleasure flying time. * Unique outward, simple but Practical, the best 5" portable FPV receiver monitor and dvr all in one. * Black fpv monitor or white one for optional, perfect match with dji,fatshark remote controller.
Specifications :
Receiver |
1.2Ghz 24CHS -102dB |
A1:1080 MHz; A2:1120MHz; A3:1160MHz; A4:1200MHz A5:1240 MHz; A6: 1280MHz; A7:1320MHz; A8:1360MHz B1:1080 MHz; B2:1120MHz; B3:1160MHz; B4:1200MHz B5:1258 MHz; B6: 1280MHz; B7:1320MHz; B8:1360MHz C1:1080 MHz; C2:1120MHz; C3:1160MHz; C4:1200MHz C5:1010MHz; C6: 1040MHz; C7:1240MHz; C8:1280MHz |
Antenna |
RF-SMA 4 Blade |
Displayer |
Screen size |
5 inch LCD screen |
Resolution |
800 X 480 Pixel |
Contrast |
500:01:00 |
Brightness |
350 cd/M2 |
Recorder |
Storage |
TF card 1GB-32GB(optional) |
Video compress |
MPEG-AVI 30fps |
Language |
Multiple |
AV IN |
TV system |
NTSC / PAL (for wired camera) |
AV-OUT |
Output voltage |
3.6-4.2 V |
Audio |
Speaker |
1W |
Operating system |
PC |
Windows & Mac OS |
Port |
USB 2.0 |
Language |
Multiple |
Power |
Current |
340MA-680MA |
AC adapter |
DC 5V 2A |
Built-in battery |
Li-battery 3200Mah |
Standby time |
Wireless record |
>=9.5 hours(off-screen); |
Wired record |
>=12 hours(off-screen); |

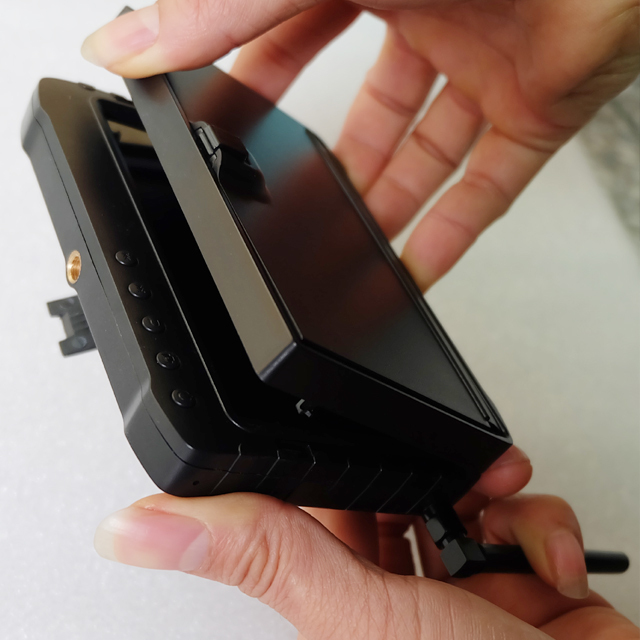

Sunshade |
one button open |
Patend LCD hood |
Dimension |
With sunshade |
131 x 90.5 x 28mm |
Weight |
with sunshade |
260G |
Package:
* 1 x DVR; * 1 x usb cable; * 1 x AC adapter; * 1 x AV-OUT cable; * 1 x AV-IN cable;
Package:
* DVR x 1pcs ; * usb cable x 1pcs ; * AC adapter x 1pcs ; * AV-OUT cable x 1pcs ; * AV-IN cable x 1pcs ; |
