Description:

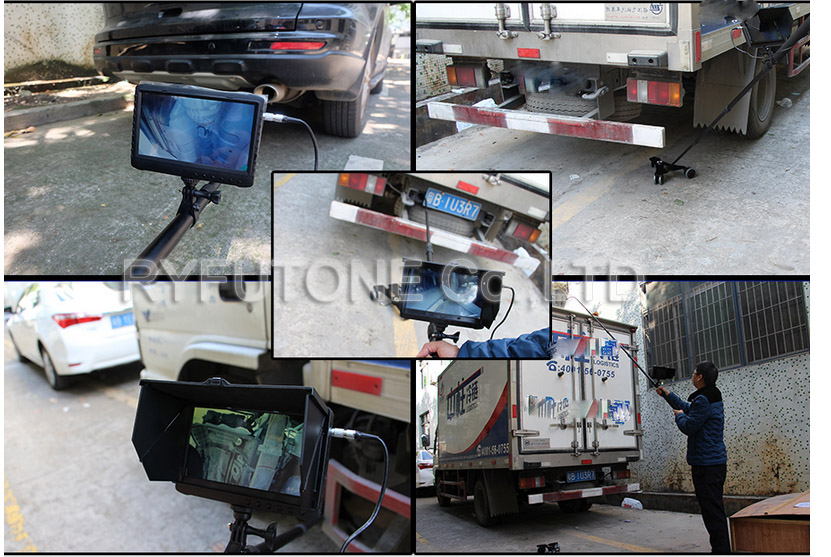

The MINIHD200 can be used in the private cars, airport, wharf, customs, hotels, prisons, military restricted zones and so on for checking the security of the vehicles bottom.
It is also suitable for checking if there are explosives under the cars which park in the stadium, police station, cinema, theater, large factories, venue and so on.

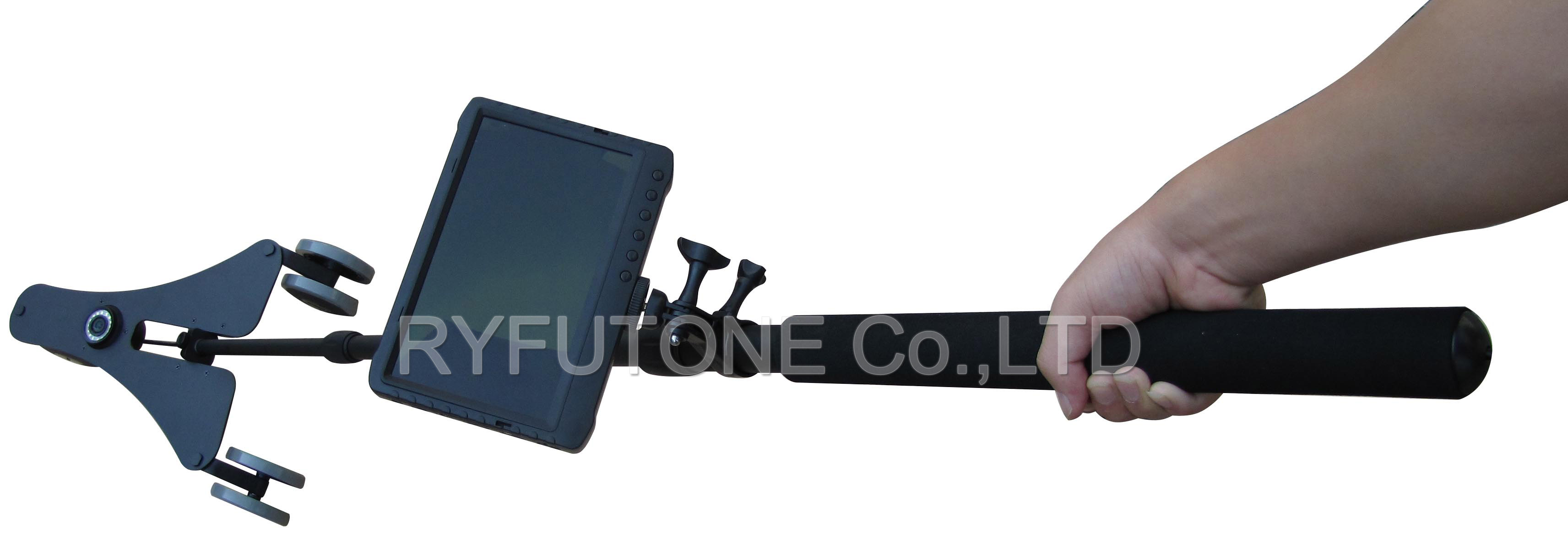

This 1080P HD under vehicle surveillance system is our new product for vehicle bottom security surveillance. The most capable UVSS (Under Vehicle Surveillance System) is available for detecting contraband, drugs, explosives, and other objects. Our UVSS solutions are designed to scan, monitor, and digitally record crisp, clear digital video images of the entire width of a vehicle¡¯s undersides¡ªall withone permanent or portable system. Careful integration of components makes the UVSS a cost effective and convenient solution for checking passenger vehicles, vans, buses, semi tractors, trucks and trailers, and more. it's an ideal solution for governmental, military, corporate, and transportation facilities wherever complete vehicle monitoring is required. It can display the image of four directions and thoroughly inspect the prohibited substance which is installed onto the bottom of cars, trucks and all kinds of vehicles. In addition, it can let drivers have a good master of the situation of vehicle bottom via a 7inch HD digital DVR monitor. And this DVR has video recording function, and the video will keep in the SD card for backup.
Features :

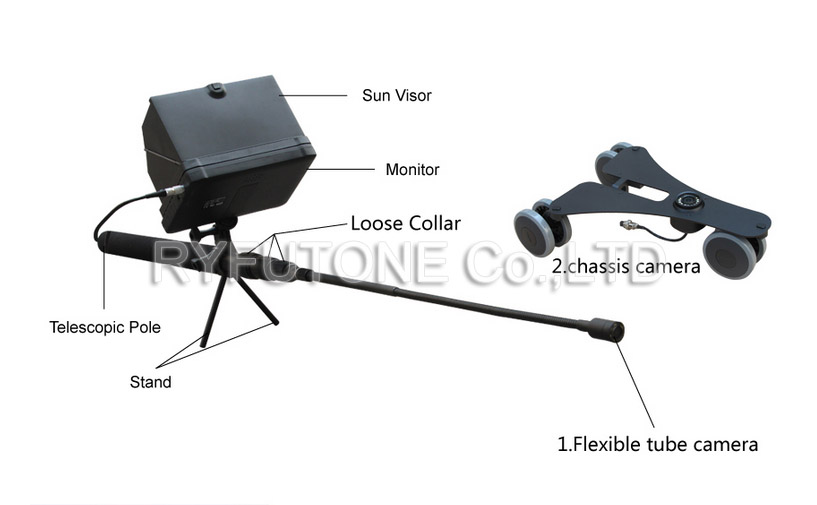

* Double HD digital camera for checking. 1st camera: 5.0 Mega 16 LED camera with universal wheels. 2nd camera: 5.0 Mega 6 LED camera ¦µ18mm with 0.5m flexible pole.

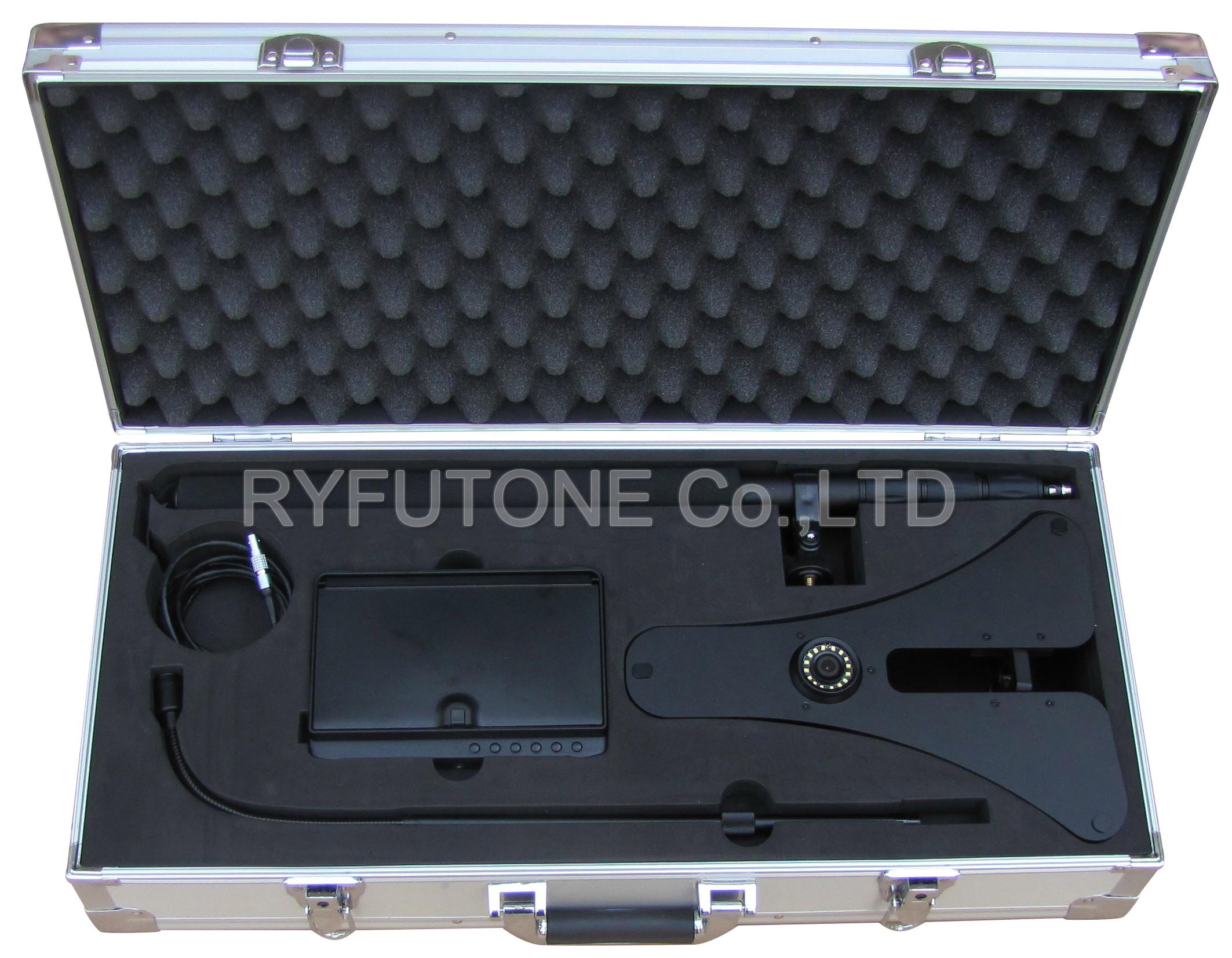

* Universal wheel with wear-resisting tires. * Reinforced design passed 10000 times crash testing. * 7 inch monitor with a sunshade. * Support 64GB storage. * Support HDMI video output. * Support H.264 Video Compression Format. * 5000mah li-battery, 8 hours working time. * 2M Telescopic Survey Pole for all-purpose usage. * Top grade aluminum allay case .
Specification:

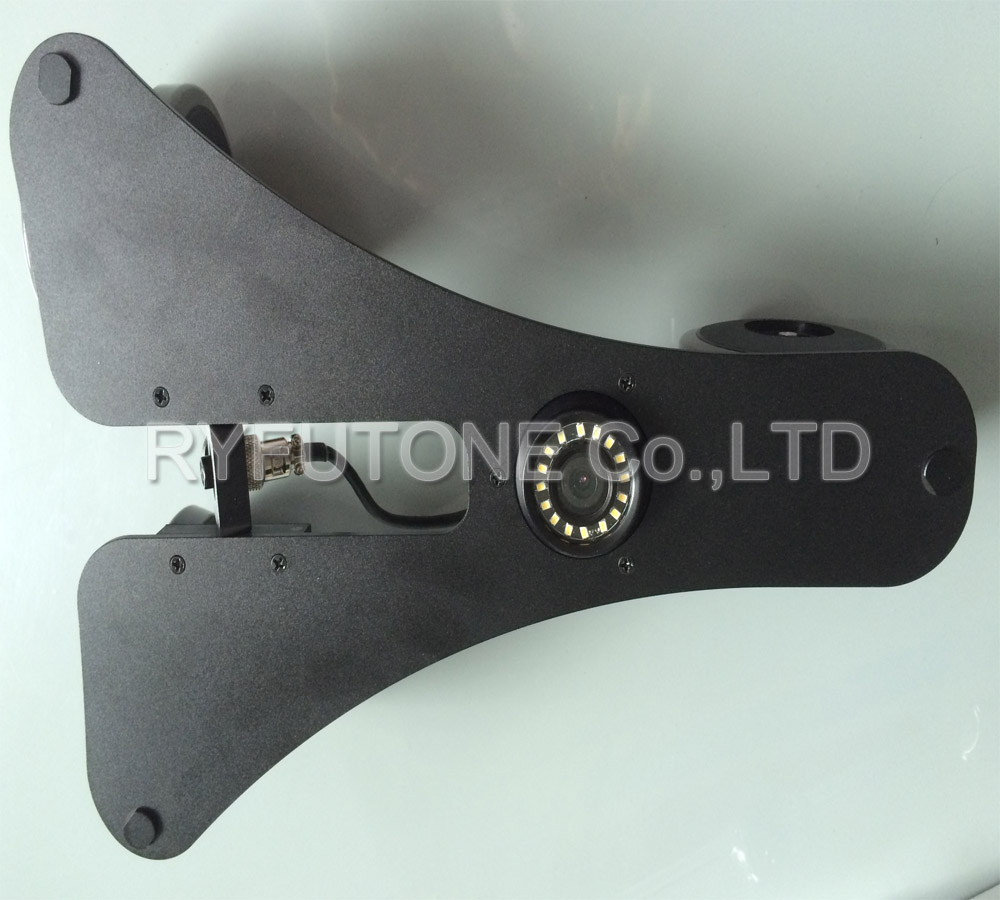

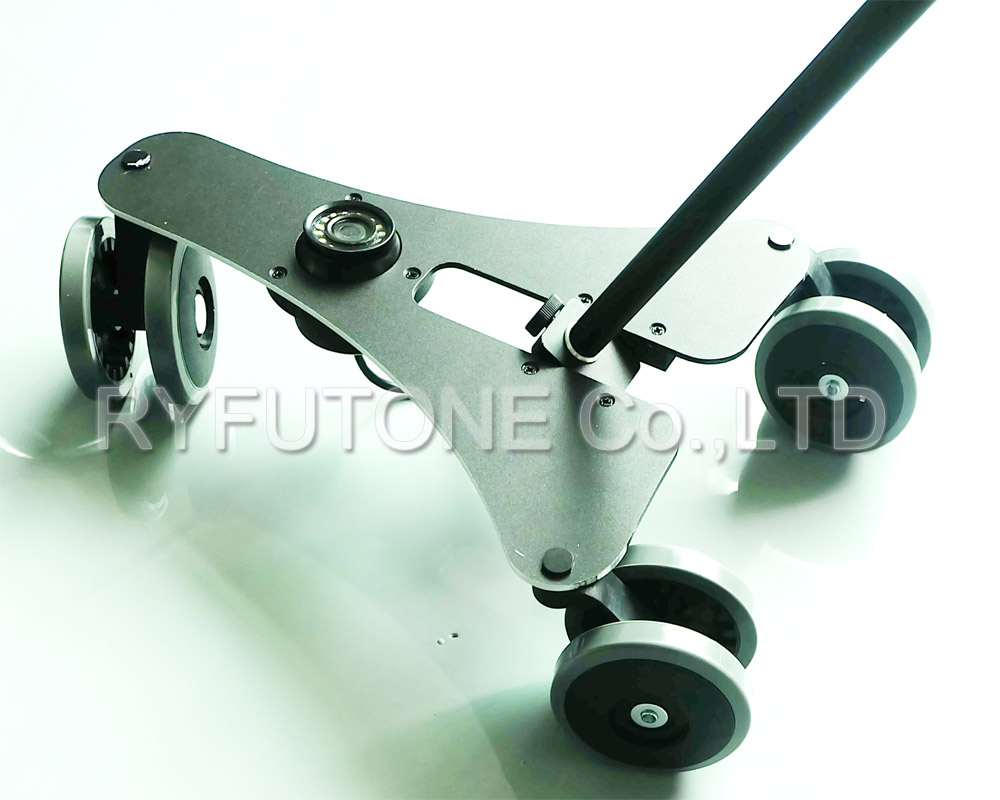

amera for wheels tray |
Optical Element |
1/2.5 CMOS Sensor SONY |
Optical Total Pixels |
5.0 Mega £º3200£¨H£©¡Á1800£¨V£© |
CMOS Sensor Size |
5.6mm£¨H£©¡Á3.14mm£¨V£© |
LED lamps |
16 pcs LED lamps high light |
Sensitivity |
0.08Lux/F1.2 |
Lens & View angle |
3.6mm F1.2 (H )120 ¡ã |
HD Video Output Interface |
FPD-Link¢ó |
Wheels on the tray |
Omni-directional wheel |
Dimension & Weight |
37 x 46mm, 35g(only camera) |
Cable(5 Cores High-Speed Line) |
Diameter£º4.0mm Length£º3meters |

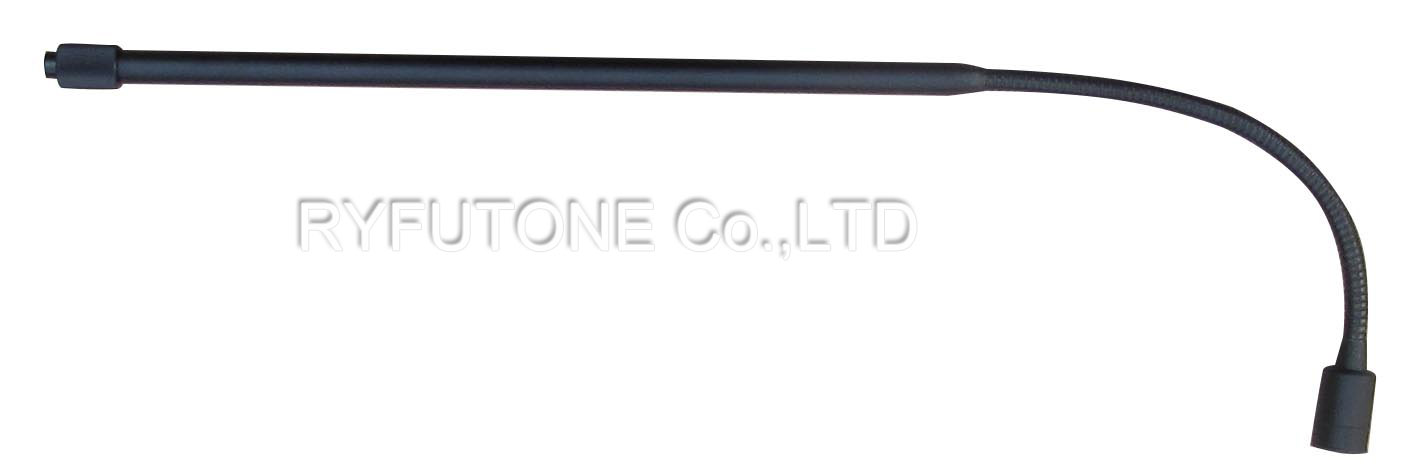

Mini camera for soft metal pipe |
Optical Element |
1/3 CMOS Sensor |
Optical Total Pixels |
5.0Mega£º3200£¨H£©¡Á1800£¨V£© |
CMOS Sensor Size |
5.07mm£¨H£©¡Á3.38mm£¨V£© |
LED lamps |
6 pcs LED lamps hight light |
Sensitivity |
0.2Lux/F1.2 |
Lens & View angle |
0.5mm F1.2 120 ¡ã |
HD Video Output Interface |
FPD-Link¢ó |
Dimension & Weight |
18 x 28mm, 10g |
Cable(5Cores High-Speed Line) |
Diameter£º4mm Length£º3meters |
Flexible pipe lenth |
25cm soft metal pipe |

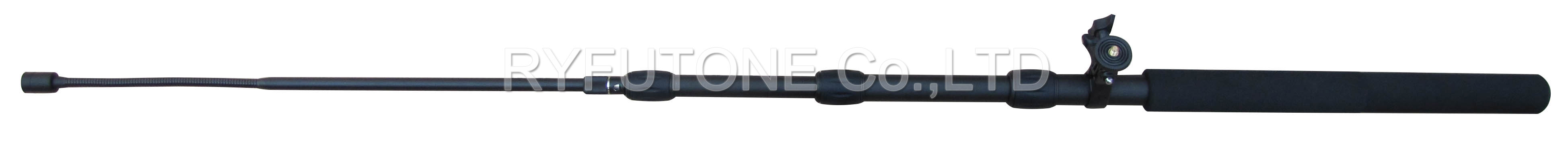

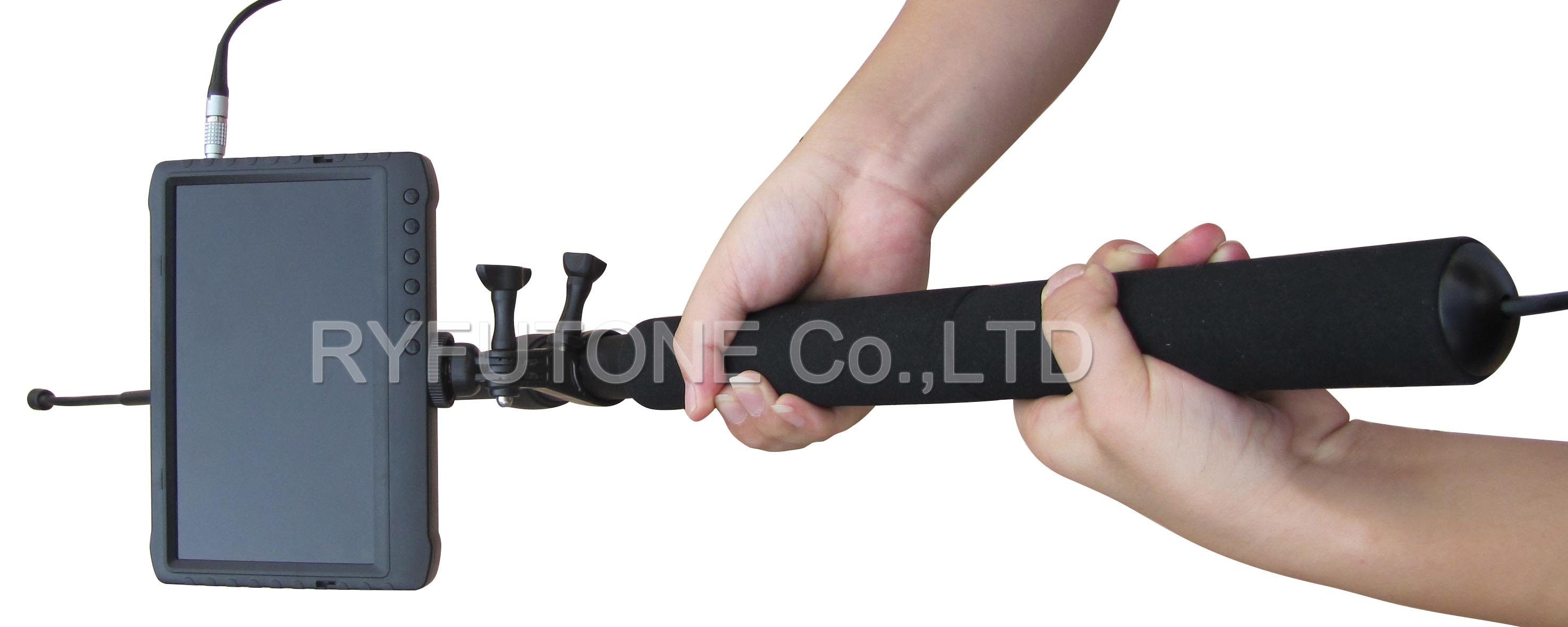

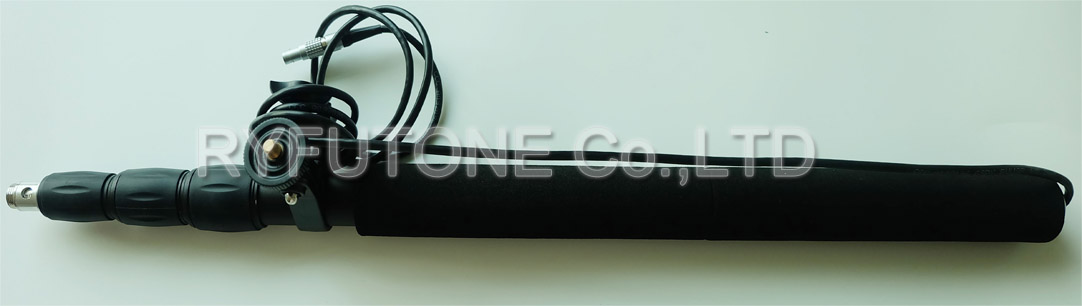

Telescopic Pole |
Constriction Length:58cm |
Unfolded Length:228cm |

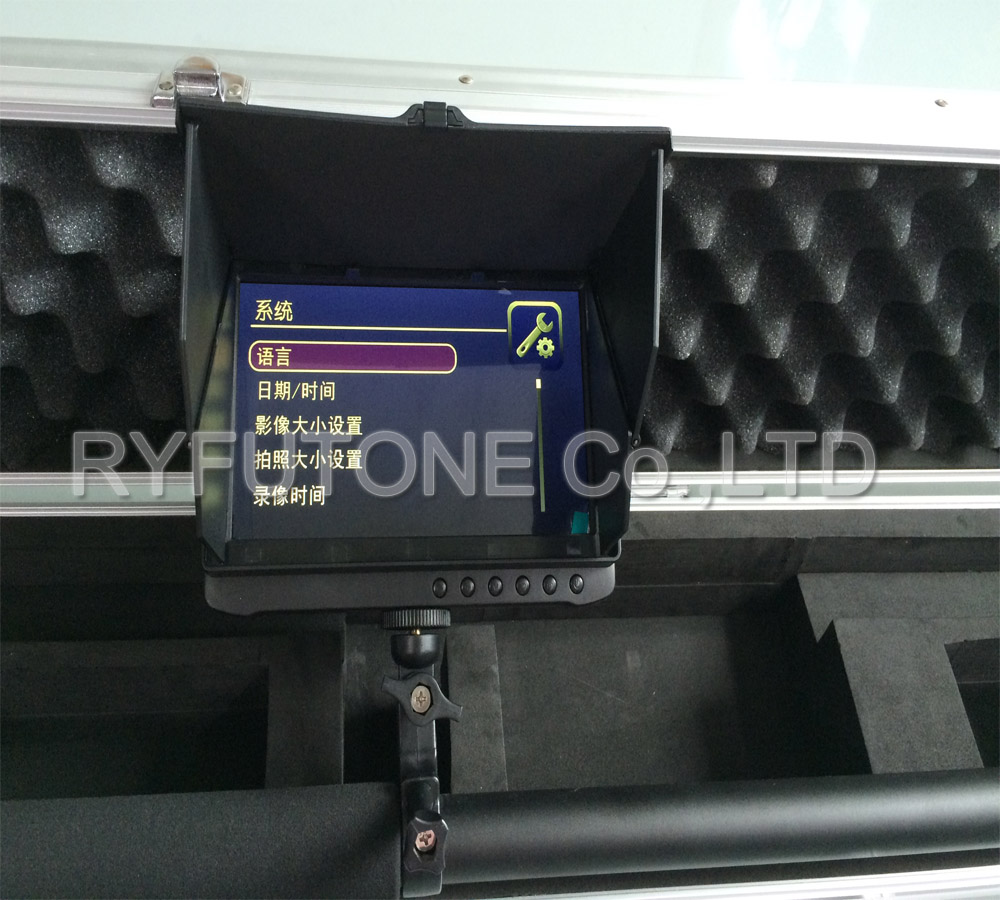

DVR 7" SCREEN |
HD Video Output |
HDMI£º1920* 1080£»1280*720 |
Video Storage Pixels£¨16£º9£© |
HDMI£º1920* 1080£»1280*720 |
Video Compression Format |
H.264 |
Video Storage |
AVI |
HD Digital Video Input Interface |
FPD-Link¢ó |
Photo Format |
JPG 5.0 MP £º3200£¨H£©¡Á1800£¨V£© |
Storage External SD card |
TF card 1GB-64GB£¨Optional£© |
Operating System |
Windows & Mac OS |
Port |
USB 2.0 |
Language |
Multiple |
Voltage |
DC :7-24V USB DC:5V |
Current£¨Monitor mode£© |
600 mA |
Current£¨Video mode£© |
700 mA |
AC Adapter |
DC 12V 1A |
Built-in Battery |
Li-battery 5000mAh |
Record time |
8 hours |
Dimension: |
177mm x120mm x 20mm |
Sunshade |
One-press open sunshade |
Weight |
350G |
|
