THE 2.4GHz Wireless PEN : Real time video , Min. 100m transmission distance without blocks,786X576 pix 520TVL;Mini Wireless camera
2.4GHz Wireless Pen Camera Selling points:
* Wireless transmission provides real time video on DVR to view effect as you record; * Excellent night vision(Minimum Illumination 0.008Lux); * High quality image (786 x 576pix); * Super long continuous working time(1.3 hours); * Min. 100m transmission distance without blocks; * Professional design for business men and students.
Application: You can hang it on pocket, place it on a desk, and even hold it in hand to write;It starts transmitting! It's ideal for businessmen, law enforcement agencies and journalists, professional to fulfill their undercover assignments: such as evidence collection, hidden investigations, surveillance, etc. It's also great as a toy for hobby enthusiasts, as for body worn solutions.
2.4GHz Wireless Pen Camera Specification:
Item |
Value |
Transmission Frequency |
2.4G |
2414Mhz(CH1); 2468MHz(CH4) |
2.3G |
2370Mhz(CH1); 2510MHz(CH4) |
Audio subcarrier frequency |
6.0Mhz |
Antenna |
Built-in 2.4G antenna |
Transmitting Range |
300 feet in line of sight |
CMOS Total Pixels |
786 x 576(PAL) 656 x 492(NTSC) |
Horizontal resolution |
520TV line |
Minimum Illumination |
0.008Lux / F1.5 |
Built-in mic. |
55dB high sensitivity |
View Angle |
55 |
camera lens focus |
Beyond 3m vicinity:10mm |
Transmission Power |
10mW |
Battery Performance |
Li-ion Battery 160mAH |
Working Time |
1.3 hours |
Charge time |
1.5 hour |
Operating voltage |
DC 5V |
Operating current |
105MA |
Dimensions( LX D) |
144X14.5 mm |
Weight |
30g |

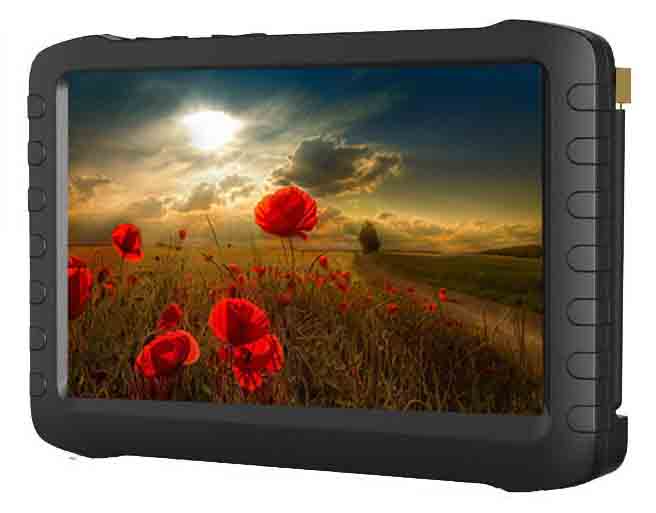

HD 2.4GHz wireless mini DVR 5inch TFT support 32G SD card:
Parameter: * 5-inch super large HD screen (800X480pix), which provides clear and smooth image,mini size and portable recorder with fashionable & new design; * Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours; * Supports storage up to 32G TF card, which records up to 32 hours; * Supports 2.4GHz & 5.8GHz wireless frequency; * 8 channels auto/manual switch; * Folding hidden external antenna assures excellent wireless receiving; * Supports AV IN function: receiving signal from wired cameras; * Photo function: it can take, review & store pictures; * Supports intelligent motion detect video recording; * Overwrite: It supports loop recording, which can automatically overwrite when storage is full; * Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness; * Support power-saving mode: automatic shutdown, automatic off-screen; * Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions; * It's of high compatibility, which supports almost all computer operating system, including MAC; * Supports multi-language.
HD 2.4GHz wireless mini 5inch DVR Specifications:
Items |
Value |
Wireless Receiving |
2.4GHz ¨C8 channels |
CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. |
( Choose 1 group of frequency from 2.4G/within 5.8G/beyond 5.8G) |
CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz |
Within 5.8G¡ª8 channels |
CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. |
¡¡ |
CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
¡¡ |
Beyond 5.8G¡ª8 channels |
CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. |
¡¡ |
CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz |
¡¡ |
Sensitivity |
-92dB |
¡¡ |
Receiving distance |
100 meters |
AV IN |
TV system |
NTSC / PAL |
Output voltage |
3.6-4.2 V |
HD 5-inch LCD screen |
Active area |
108mm(W) X 64.8mm(H) |
Resolution |
800 X 480 Pixel |
Luminance for LCM |
200 cd/©O |
Cape clear 5-inch LCD screen |
Active area |
118mm(W) X 62.8mm(H) |
Resolution |
480 X 272 Pixel |
Luminance for LCM |
300cd/©O |
Video |
Resolution |
720*576 / 640*480 |
Video compress |
MPEG-AVI 30fps |
Play format |
MPEG-AVI |
Audio |
Frequency |
20HZ-20KHz stereo |
Earphone Output |
Left: 20MW+ right 20mW [16O](suit to largest volume) |
Speaker |
1W |
Photo |
Format |
JPG/JPEG |
Storage |
External SD card |
TF card 1GB-32GB(optional) |
32GB recording time |
10-32 hours |
1GB photos |
15625pcs |
Operating system |
PC |
Windows & Mac OS |
Port |
USB 2.0 |
Language |
Multiple |
Power |
Voltage |
DC 5V |
Current(receiving mode) |
660MA |
Current( recording mode) |
680MA |
Current(recording with off-screen mode) |
340MA |
AC adapter |
DC 5V 2A |
Built-in battery |
Li-battery 3200mAh |
Standby time |
Wireless record |
¡Ý9.5 hours(off-screen); ¡Ý5hours(on-screen) |
Wired record |
¡Ý12 hous(off-screen); ¡Ý6hours(on-screen) *LED camera not included. |
Size (L x W x H) |
131mm x 86mm x 18mm |
Weight(g) |
205g |
The package:
1 * Pen Camera 1 * Wireless dvr 1 * User Manual 1 * USB Cable 1 * Power Charger 1 * AV Cable |
