32CHS Wireless CCTV Camera Micro Wireless 4-24V Power Security Cameras

32CHS Wireless CCTV Camera Micro Wireless 4-24V Power Security Cameras



Condition:New
Model:MINISTH9E
Warranty 1 year!



32CHs  Wireless Transmission Kit Features:

*  All-in-one 32CHs mini wireless transmitter
*  Built-in with 25mW 32CHs 5.8Ghz transmitter.
*  It covers over 100 meters with excellent video and audio.
*  Wide view angle lens: 90¡ãor 120¡ã for optional.
*  7V-24V wide working voltage.(Support 2S-6S lipo battery)
*  Ultra-light weight, only 7 gram.
*  No need troublesome cables connecting, just power it up to use.

32CHS Wireless CCTV Camera Micro Wireless 4-24V Power Security Cameras
32CHS Wireless CCTV Camera Micro Wireless 4-24V Power Security Cameras
32CHS Wireless CCTV Camera Micro Wireless 4-24V Power Security Cameras

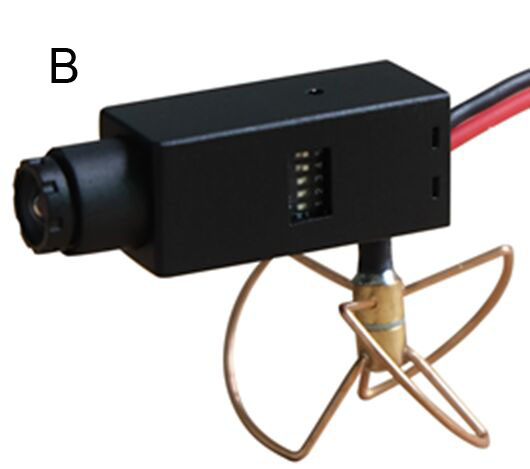

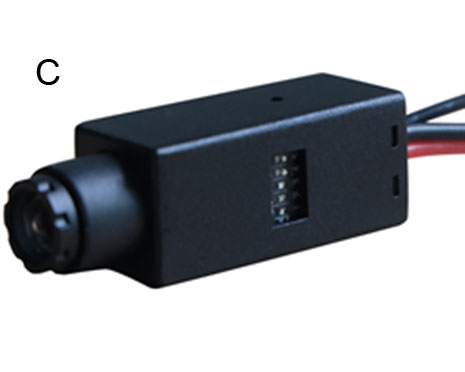

Note: there are have three model cameras : A model, B model , C model. If no mark ,default model A .

Specifications:

No.

Item

Specifications

Unit

Test Condition

Min.

Typ.

Max.

RF Output Characteristic

1

Tx Power

13

14

15

dBm

2

Audio subcarrier Level

-26

-28

-30

dBc

A/V (Video and Audio Index)

3

AL

(Audio Subcarrier Freq. NCY)

6470

6500

6530

KHz

Camera Characteristics

1

PICK UP ELEMENT

Single chip 1/4CMOS

2

NUMBER OF PIXEL

NTSC: 720(H)¡Á480(V)PAL: 720(H)¡Á576(V)

3

HORIZONTAL RESOLUTION

Approximately 520TV Lines

4

SENSITIVITY

0.008Lux/F1.2

5

LENS & VIEW ANGLE

0.5mm F1.2 90 ¡ã/0.5mm F3.0 120¡ã

No.

Item

Specifications

Unit

Test Condition

Min.

Typ.

Max.

Audio Characteristics

1

Freq Responsez

120-3400Hz

2

SNR

78db

DC Characteristics

1

Supply Voltage

7V

12V

24V

VDC

2

Current sddd(( sConsumption

88

mA

Dimension

1

Size(LWH)

41mmX 13mmX 13.5mm

2

Weight

TE93A/B :10g TE93C:7g

3

Temperature

-10¡æ ~ +60¡æ

4

Connection

PIN1-> Red DC5V PIN2-> Black GND
