5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield
Feature:

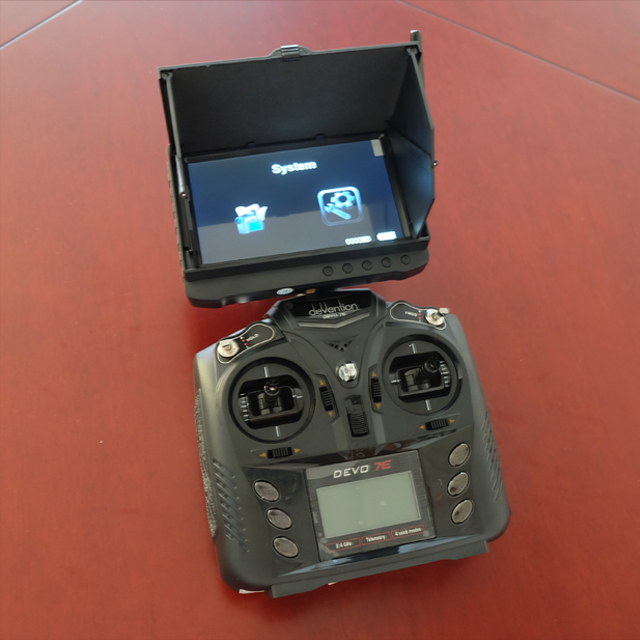

* 5" HD snow Remote control style FPV monitor, no screen,track your plane anytime,don't need to worry about lossing trace for blue screen; * 32CHS 5.8GHz wireless receiver ,one monitor for multiple plane with different frequency; * Press one button , then it begin to scan and lock channels Automically, so easy. * Support 32GB SD card storage wireless fpv dvr- RC plane black box:record all details and amazing video moment. * Professinal sunshade +3200mAh battery, 10hous working time ,enjoy your outdoor pleasure flying time. * Unique outward, simple but Practical, the best 5" portable FPV receiver monitor and dvr all in one. * Black fpv monitor or white one for optional, perfect match with dji,fatshark remote controller.
Specifications :
Receiver |
5.8Ghz 32CHS -92dB |
A1: 5.740GHz; A2: 5.760GHz; A3: 5.780GHz; A4: 5.800GHz A5: 5.820GHz; A6: 5.840GHz; A7: 5.860GHz; A8: SPI B1: 5.725GHz; B2: 5.745GHz; B3: 5.765GHz; B4: 5.785GHz B5: 5.805GHz; B6: 5.825GHz; B7: 5.845GHz; B8: 5.865GHz C1: 5.733GHz; C2: 5.752GHz; C3: 5.771GHz; C4: 5.790GHz C5: 5.809GHz; C6: 5.828GHz; C7: 5.847GHz; C8: 5.866GHz D1: 5.705GHz; D2: 5.685GHz; D3: 5.665GHz; D4: 5.645GHz D5: 5.885GHz; D6: 5.905GHz; D7: 5.925GHz; D8: 5.945GHz
|
Antenna |
RF-SMA 4 Blade |
Displayer |
Screen size |
5 inch LCD screen |
Resolution |
800 X 480 Pixel |
Contrast |
500:01:00 |
Brightness |
350 cd/M2 |
Recorder |
Storage |
TF card 1GB-32GB(optional) |
Video compress |
MPEG-AVI 30fps |
Language |
Multiple |
AV IN |
TV system |
NTSC / PAL (for wired camera) |
AV-OUT |
Output voltage |
3.6-4.2 V |
Audio |
Frequency |
20HZ-20KHz stereo |
Earphone Output |
Left:20MW + right 20mW[16O](suit to largest volume) |
Speaker |
1W |
HD 5-inch LCD Screen |
Active area |
108mm(W) x 64.8mm(H) |
Resolution |
800 x 480 Pixel |
Luminance for LCM |
200cd/M2 |
Video |
Resolution |
720*576/720*480 |
Video compress |
MPEG-AVI 30fps |
Play format |
MPEG-AVI |
Photo |
Format |
JPG/JPEG |
Storage |
External SD card |
TF card 1GB-32GB (optional) |
32GB recording time |
10-32 hours |
1GB photos |
15625pcs |
Operating system |
PC |
Windows & Mac OS |
Port |
USB 2.0 |
Language |
Multiple |
Power |
Votage |
DC 5V |
Current(receiving mode) |
600MA |
Current(recording mode) |
680MA |
Current( recording with off-screen mode) |
340MA |
AC adapter |
DC 5V 2A |
Built-in battery |
Li-battery 3200Mah |
Standby time |
Wireless record |
¡Ý9.5 hours(off-screen); |
Wired record |
¡Ý12 hours(off-screen); |

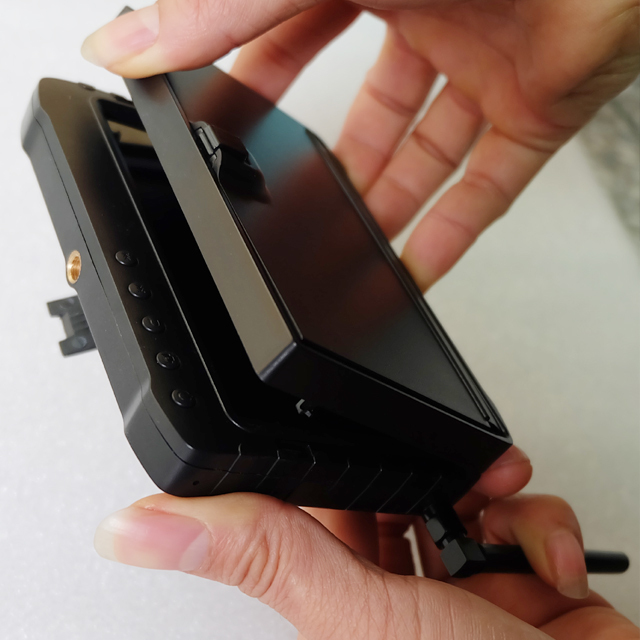

Sunshade |
one button open |
Patend LCD hood |
Size(LxWxH) |
Without sunshade |
131 x 90.5 x 18mm |
With sunshade |
131 x 90.5 x 28mm |
Weight |
Without sunshade |
215G |
with sunshade |
260G |
Package:
* DVR x 1pcs ; * usb cable x 1pcs ; * AC adapter x 1pcs ; * AV-OUT cable x 1pcs ; * AV-IN cable x 1pcs ;
|
