CMOS F1.2 and 90 degrees wide view angle mini HD spy camera


Condition:New
Model:SMC-IR8



This camera comes with high sensitive CMOS sensor, high luminous flux (F1.2) and wide view angle (90¡ã) mini lens. 8 controllable IR940 lamps enable the effective recording distance up to 5 meters, and surveillance area up to 100 square meters in the complete darkness. This series of products are of small volume and light weight, high stability and ultra long working life. They are very suitable for day & night hidden surveillance, project monitoring, and equipment maintenance, etc.

Main Features:
*  8 invisible IR lamps enable the effective recording distance up to 5 meters;
*  High luminous flux (F1.2) and wide view angle (90¡ã) mini lens;
*  Surveillance area up to 100 square meters in the complete darkness;
*  Small size, which is easy to install into narrow room and slim tube, etc.;
*  520TVL Digital chip synthesis technology offers true color & HD video.
Day/Night 520TVL Mini CCTV Camera with 8 940 IRs 90 deg view angle
Day/Night 520TVL Mini CCTV Camera with 8 940 IRs 90 deg view angle

Specification:

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC
NUMBER OF PIXEL NTSC:656(H)¡Á492(V)
SENSOR DIMENSION 4.75mm(H)¡Á3.55mm(V)
HORIZONTAL RESOLUTION Approximately 520TV Lines
SENSITIVITY 0.00Lux/5m
LENS & VIEW ANGLE 0.5mm F1.2 / 90 ¡ã
LAMP Control 1: Light(Default) 2£ºOn-Off 3£ºSelf-Motion
LAMP 8 IR940
VIDEO OUT 1.0V p-p/75ohm
LED Control OUT 1:AV(Default) 2:On-Off 3:Photosensitive Resistor
WEIGHT Camera:12g Stand: 15G
WORK CURRENT DC5V:70mA(Lamp Off)/185mA(Lamp On); DC12V: 35mA(Lamp Off)/ 85mA(Lamp On)
POWER REQUIREMENT DC5V:(3.6-5V ) DC12V:(3.6-24V )
OPERATING TEMPERATURE - 10¡ã C ~ +50¡ãC , less than 90% RH
Connection PIN1=>Red DC5V PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=>White LED Control OUT

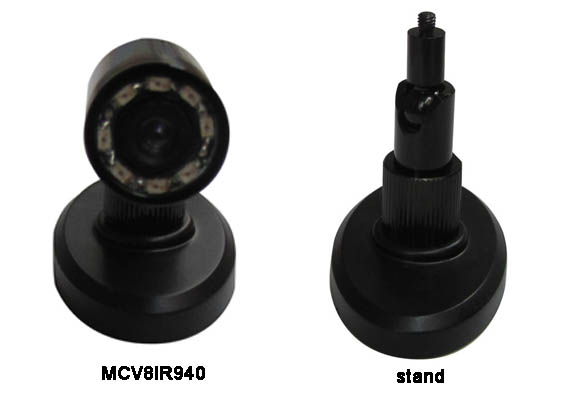

Contents:
* mini camera   X1;
* stand X1;
* AC adapter X1
