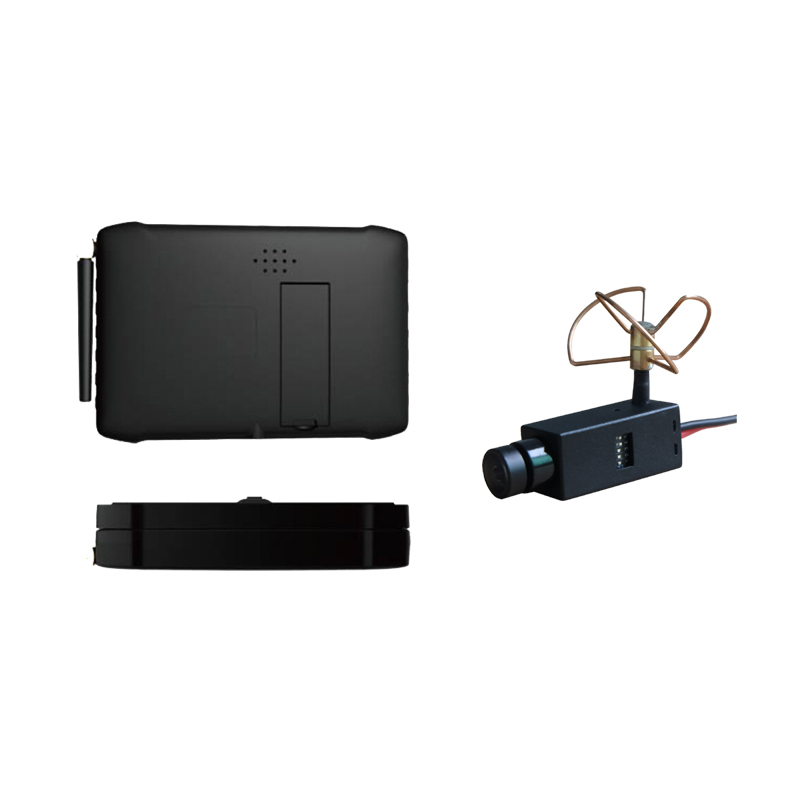

32chs Wireless Transmission Kit Features :
* Built-in with 25mW 32CHs 5.8Ghz transmitter. * It covers over 100 meters with excellent video and audio. * Wide view angle lens: 90¡ãor 120¡ã for optional. * 7V-24V wide working voltage.(Support 2S-6S lipo battery) * Ultra-light weight, only 7 gram. * No need troublesome cables connecting, just power it up to use.
Basic Information of: Receiver of 32ch Wireless Transmission Kit

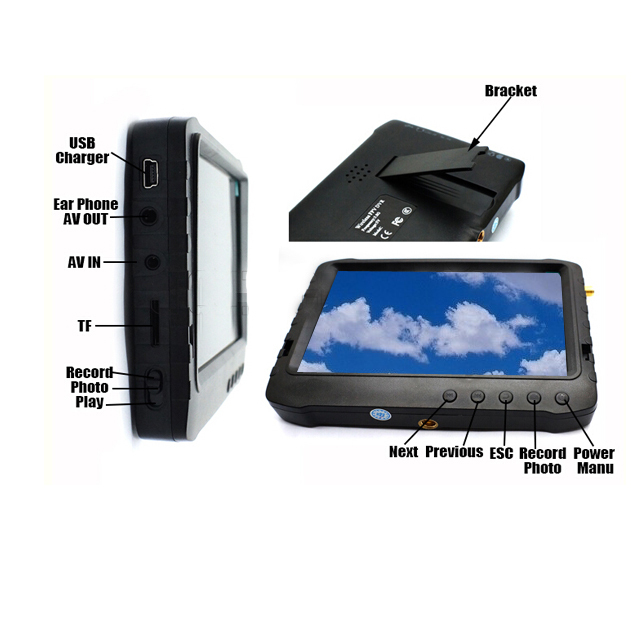

* Display: 5-inch HD screen (800X480pix). * Wireless Receiving:Built-in 5.8G/ 2.4G/1.2G wireless receiving module. * Channel Switch:Supports 32 channels, a key to auto scan to lock channel. * Antenna: Folding SMA antennaassures excellent wireless receiving. * Recording: Supports seamless cycle and continuous video from wired/wireless cameras * Photo:Supports function of taking pictures either from wired or wireless cameras. * AV IN:TV-IN (NTSC / PAL). * AV OUT:(NTSC / PAL). * Battery:Built-in 3200mAh high capacity Li-battery. * Speaker: Built-in speaker of 1W. * Storage: Supports up to 32GB TF card. * Language: Supports multi-language. * Supports Power-saving Mode:automatic shutdown, automatic off-screen. * Automatic upgrade: Supports system automatic upgrade. * Sunshade Cover Provided: Screen video can be viewed clearly under sunshine. * Screw-socket: 1/4 inch standard screw socket.
Camera:
PV Camera
|
Video
|
Optical Element |
1/3 CMOS Sensor |
Optical Total Pixels |
520tvl |
Format |
NTSC/PAL |
Sensitivity |
0.008Lux/F1.2 |
Lens & View angle |
0.5mm F1.2 90 ¡ã-120¡ã |
Audio |
Support |
Dimension |
41mmX 13mmX 13.5mm |
Transmitter |
Working frequency |
5.8Ghz |
Working channel |
32 channels |
RF OUTPUT POWER |
25mw(Real) |
POWER REQUIREMENT |
7-24V(2S-6S) |
Antenna |
RP-SMA 3 Blade |
HD 5.8GHz 5inch Wireless Mini Camera DVR Receiver:
Receiver |
5.8Ghz 32CHS -92dB |
A1: 5.740GHz; A2: 5.760GHz; A3: 5.780GHz; A4: 5.800GHz A5: 5.820GHz; A6: 5.840GHz; A7: 5.860GHz; A8: SPI B1: 5.725GHz; B2: 5.745GHz; B3: 5.765GHz; B4: 5.785GHz B5: 5.805GHz; B6: 5.825GHz; B7: 5.845GHz; B8: 5.865GHz C1: 5.733GHz; C2: 5.752GHz; C3: 5.771GHz; C4: 5.790GHz C5: 5.809GHz; C6: 5.828GHz; C7: 5.847GHz; C8: 5.866GHz D1: 5.705GHz; D2: 5.685GHz; D3: 5.665GHz; D4: 5.645GHz D5: 5.885GHz; D6: 5.905GHz; D7: 5.925GHz; D8: 5.945GHz
|
Antenna |
RF-SMA 4 Blade |
Displayer |
Screen size |
5 inch LCD screen |
Resolution |
800 X 480 Pixel |
Contrast |
500:01:00 |
Brightness |
350 cd/M2 |
Recorder |
Storage |
TF card 1GB-32GB(optional) |
Video compress |
MPEG-AVI 30fps |
Language |
Multiple |
AV IN |
TV system |
NTSC / PAL (for wired camera) |
AV-OUT |
Output voltage |
3.6-4.2 V |
Audio |
Frequency |
20HZ-20KHz stereo |
Earphone Output |
Left:20MW + right 20mW[16O](suit to largest volume) |
Speaker |
1W |
HD 5-inch LCD Screen |
Active area |
108mm(W) x 64.8mm(H) |
Resolution |
800 x 480 Pixel |
Luminance for LCM |
200cd/M2 |
Video |
Resolution |
720*576/720*480 |
Video compress |
MPEG-AVI 30fps |
Play format |
MPEG-AVI |
Photo |
Format |
JPG/JPEG |
Storage |
External SD card |
TF card 1GB-32GB (optional) |
32GB recording time |
10-32 hours |
1GB photos |
15625pcs |
Operating system |
PC |
Windows & Mac OS |
Port |
USB 2.0 |
Language |
Multiple |
Power |
Votage |
DC 5V |
Current(receiving mode) |
600MA |
Current(recording mode) |
680MA |
Current( recording with off-screen mode) |
340MA |
AC adapter |
DC 5V 2A |
Built-in battery |
Li-battery 3200Mah |
Standby time |
Wireless record |
¡Ý9.5 hours(off-screen); |
Wired record |
¡Ý12 hours(off-screen); |

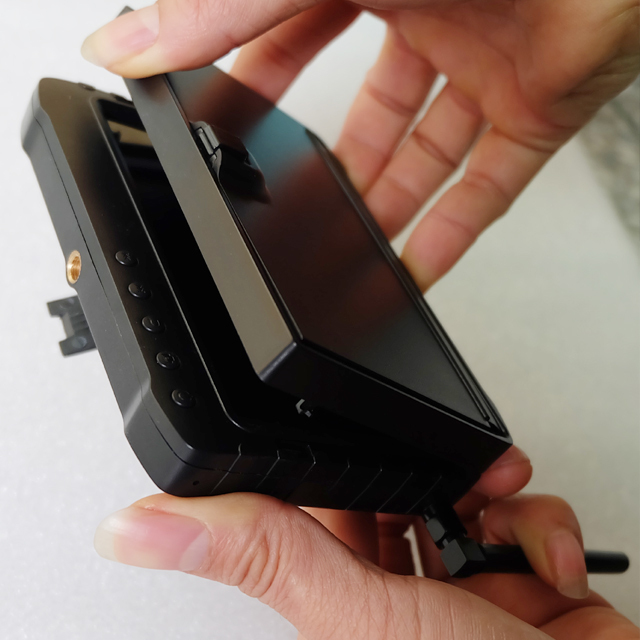

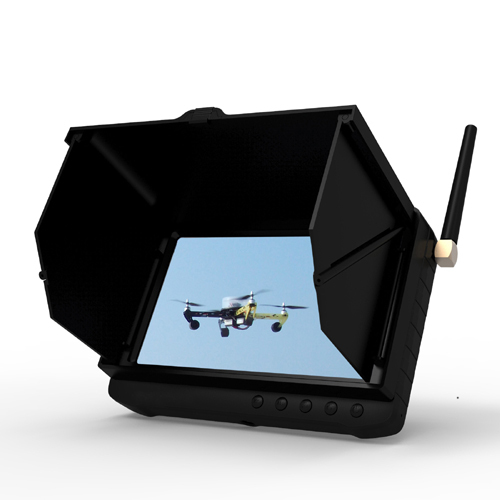

Sunshade |
one button open |
Patend LCD hood |
Size(LxWxH) |
Without sunshade |
131 x 90.5 x 18mm |
With sunshade |
131 x 90.5 x 28mm |
Weight |
Without sunshade |
215G |
with sunshade |
260G |
package:
* 1 x FPV DVR * 1 x usb cable * 1 x AC adapter * 1 x AV-IN cable * 1 x AV-out cable * 1 x wireless camera * 1 x AC adapter * 1 x User manual |
