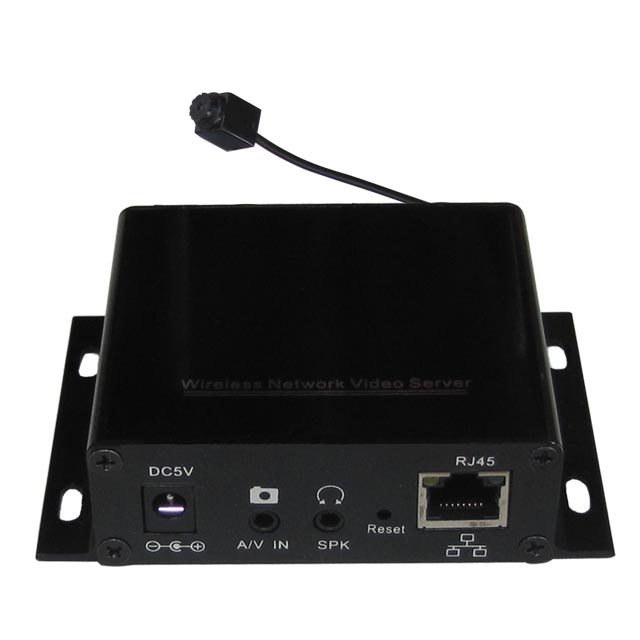

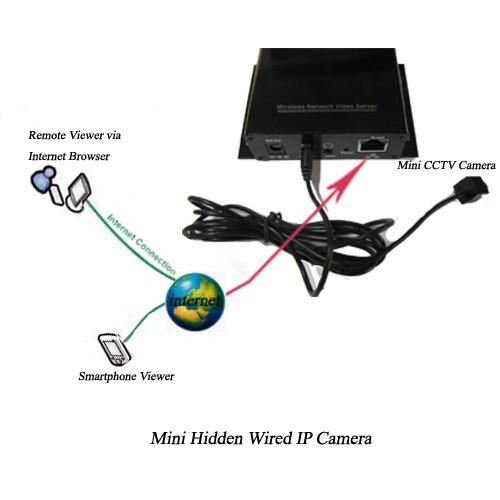

This mini hidden IP camera comes with a very small size wired house camera. It's 11.5X11.5X17mm only. You can hide it easily to any place you want.At the other side, you can remotely view and record the real time video & audio from camera on a computer or smartphone via Internet Browser.The camera can be completely invisible! Very Safe and sutiable for continuous & remote servurillance of home,offices,shops,pubs and restaurants, buildings, warehouses,etc.
Selling points:
1.Mini hidden IP camera is more safe & practical than traditional big and showy IP camera.
2. Best choice for remote & continuous surveillance of home,offices, shops,Pubs and Restaurants, Building Sites, Warehouses,etc.
3.Very clear video with high definition up to 786X576 pix, 520TVL.
4.Work day & night: Excellent night vision with low illumination to 0.008lux.
5.Very small size camera with house, very easy for installation.
Specification:

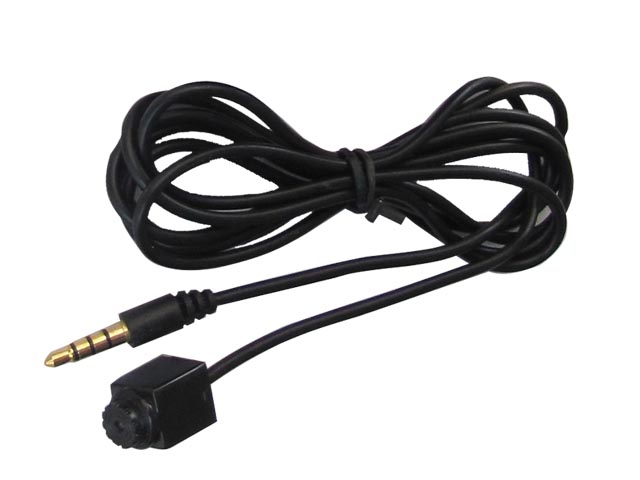

1. Mini CCTV Camera
Cable length 1.5m; 50~100m for optional purchase,USD0.5/m.
|
PICK UP ELEMENT |
Single chip 1/3 CMOS |
|
SYSTEM |
NTSC |
PAL |
|
NUMBER OF PIXEL |
NTSC:656(H)¡Á492(V) |
PAL:786(H)¡Á576(V) |
|
IMAGE SIGNAL PROCESS |
Digital Signal Processing System |
|
SENSOR DIMENSION |
4.75mm(H)¡Á3.55mm(V) |
|
HORIZONTAL RESOLUTION |
Approximately 520TV Lines |
|
SCANNING SYSTEM |
2£º1 Interlace |
|
SENSITIVITY |
0.008Lux/F1.2 |
|
LENS & VIEW ANGLE |
0.5mm F2.0 /55 ¡ã |
|
S/N RATIO |
52dB |
|
ELECTRONIC SHUTTER |
OUT (1/60 S TO 1/100000 S) |
OUT (1/50 S TO 1/100000)S |
|
AUTO GAIN CONTROL |
OUT |
|
WHITE BALANCE CONTROL |
OUT |
|
BACK LIGHT COMPENSATION |
OUT |
|
VIDEO OUT |
1.0V p-p/75ohm |
|
AUDIO OUT |
1.0V p-p/1Kohm |
|
SIZE (L x W x H) |
11.5mm x 11.5mmM x 17mm |
|
WEIGHT |
2g |
|
WORK CURRENT |
72mA |
|
POWER REQUIREMENT |
DC 3.3V-6V |
|
OPERATING TEMPERATURE |
- 10¡ã C ~ +50¡ãC ,less than 90% RH |
|
Connection |
PIN1-Red DC5V PIN2-Black GND PIN3-Yellow VIDEO OUT PIN4-white AUDIO OUT |

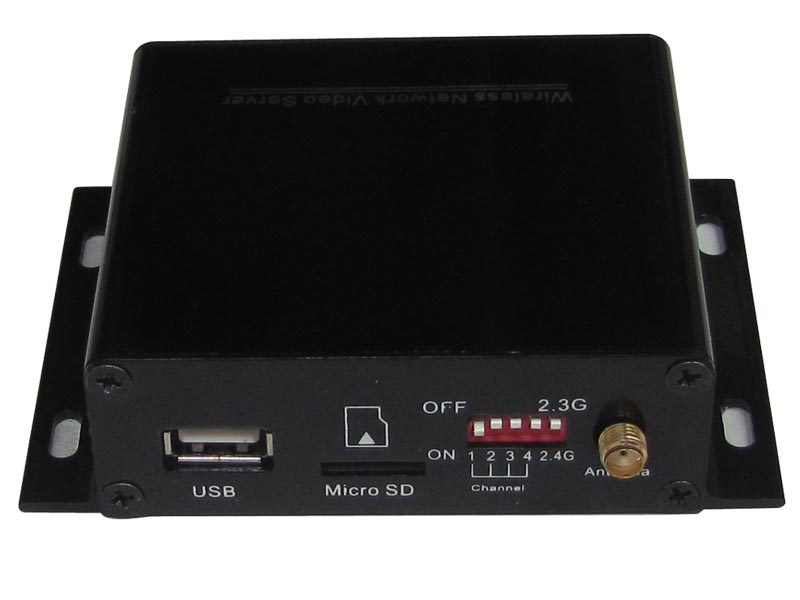

2. Wireless Network Video Server

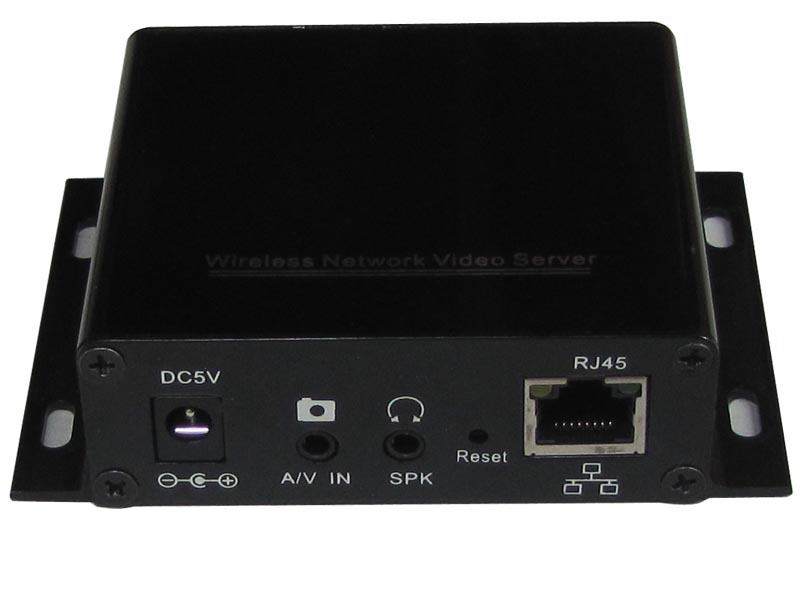

Frontview Backview
| 2.4GHz Wireless Receiving |
| Receiving Frequency |
ISM 2,360MHz~2,520MHz |
| Audio subcarrier frequency |
Default£º6.0Mhz Optional:6.5MHz |
| Channel |
Support 8 channels |
| Receiving Sensitivity |
¡Ü -85dBm |
| Antenna |
50ohm SMA |
| AV INPUT |
| Video Input Level |
1Vp-p@75ohm |
| Audio Input Level |
1Vp-p@1Kohm |
| Power Supply output |
DC5V |
| Compression standard |
| Video frequency compression standard |
H.264/MJPEG |
| Compression output code rate |
32K¡«4Mbps/1M¡«16Mbps |
| Audio frequency compression standard |
G.711 |
| Audio frequency output code rate |
64Kbps |
| Image |
| Image size |
704*576;704*288;352*288; 176*144 ;704*480;704*240;352*240 |
| Frame Rate |
1-30f/s |
| Function |
| 2.4GHz wireless receiving |
Support |
| AV input of wired camera |
Support |
| Mobile phone monitoring |
Support |
| Network protocol |
PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,SIP,DDNS,DNS |
| Motion detection |
Support |
| Area shield |
Support |
| SD Card local storage |
Support |
With WIFI for optional (it is optional to use high power WIFI module) |
|
| Support encryption: wep64,wep128,wpa,wpa2 |
| Wireless power: 13dbm(54M) (high power module, wireless power: 20dbm/54M) |
| Wireless distance: <=70m (high power module<=300M) |
| General specifications |
| Working temperature |
-10¡æ¡«65¡æ |
| Working humidity |
85%RH or less |
| Power source |
DC5V/1A |
| Power consumption |
<3W |
| Size (LXWXH) |
7.5cm(L)x 10.5cm(W) x 2.9cm(H) |
| Weight |
180g |
Package:
1 * Wireless Network Video Server
1 * mini camera
1 * adapter
1 * cd
|
