1/4 CMOS 90Deg Pinhole Camera lens plug and play


Condition:New

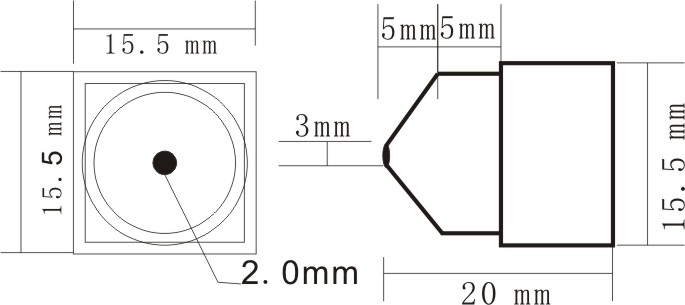

Size:15.5*15.5*20mm
DC3.6-24V Wide voltage
480TVL, 0.1lux/F2.8
Model:MC91AP36



Main Features :

*  90 degree wide view angle pinhole lens,.6-24v wide voltage;
*  Small Size: easy to install into narrow room and slim tube, etc.;
*  High
resolution, high sensitivity, high SNR;
*  Day & night dual mode auto switch;
*  Low Illumination, Low
Current and power consumption;
*  CMOS sensor generation IV+DSP chip offer true color & HD  video


Pinhole lens 90deg view 480TVL CMOS Mini CCTV Camera with Audio
Pinhole lens 90deg view 480TVL CMOS Mini CCTV Camera with Audio

PICK UP ELEMENT Single chip 1/4CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC:720(H)กม480(V) PAL:720(H)กม576(V)
SENSOR DIMENSION 3.584mm(H)กม2.688mm(V)
HORIZONTAL RESOLUTION Approximately 480TV Lines
SENSITIVITY 0.1Lux/F2.8
LENS & VIEW ANGLE F2.8/ 90กใ
S/N RATIO 48dB
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
WEIGHT กกกก6g
SIZE(LXWXH) 15.5X15.5X20mm
WORK CURRENT DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT DC:3.6V-24V
OPERATING TEMPERATURE - 10กใ C ~ +50กใC ,less than 90% RH
Connection PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT

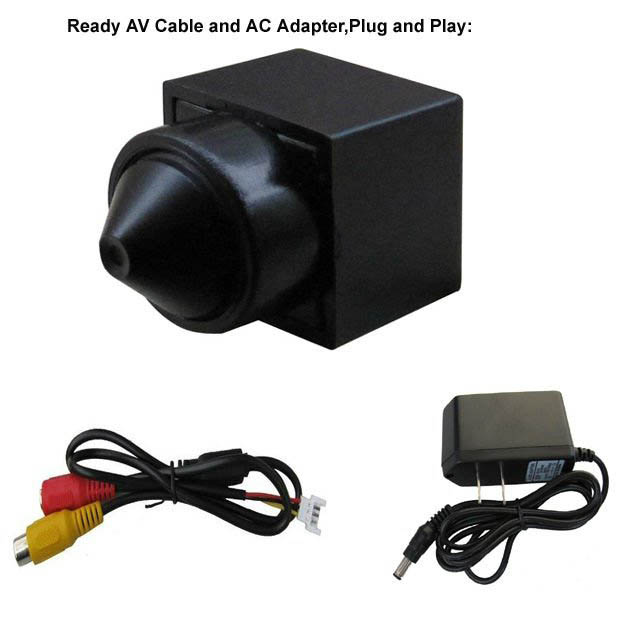

Contents:
* mini camera   X1;
* RCA BNC cable X1;
* AC adapter DC5VX1
