Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio



Condition:New
Model:SPYCM921A



Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio

Main Features:

*  Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
*   Light Weight: easy install without causing unnecessary damage on object surface;
*  High resolution, high sensitivity, high SNR;
*  Day & night dual mode auto switch;
*  Wide view angle(90 degree );
*  Low Illumination, high quality video record function;
*  Low Current and power consumption;
*  CMOS sensor generation IV+DSP chip offer true color & HD video.

Specifications:

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC:656(H)¡Á492(V) PAL:786(H)¡Á576(V)
SENSOR DIMENSION 4.75mm(H)¡Á3.55mm(V)
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 2:1 Interlace
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F2.0 : 90 ¡ã
S/N RATIO 48dB
ELECTRONIC SHUTTER OUT (1/60 S TO 1/100000 S) OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
AUDIO OUT 1.0V p-p/1Kohm (only MC908A / MC908-12 / MC908AE)
SIZE (L x D ) 27.5mm x 15.0mm
WEIGHT 8g
WORK CURRENT DC5V: 70mA DC12V: 40mA
POWER REQUIREMENT DC 5V/12V
OPERATING TEMPERATURE - 10¡ã C ~ +50¡ãC £¬less than 90% RH

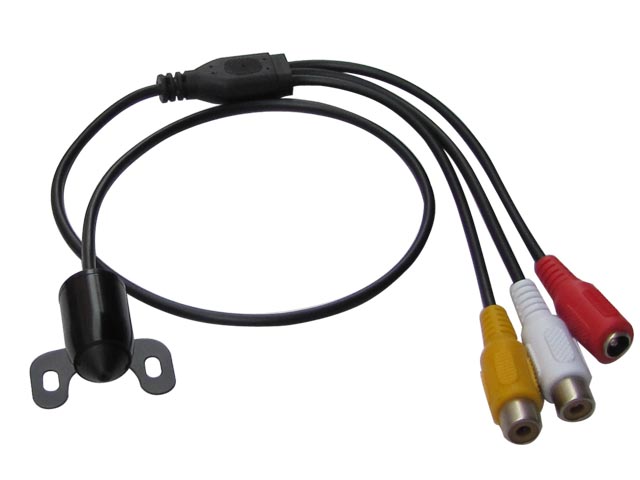

Connection PIN1=>Red Power supply PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=> White AUDIO OUT

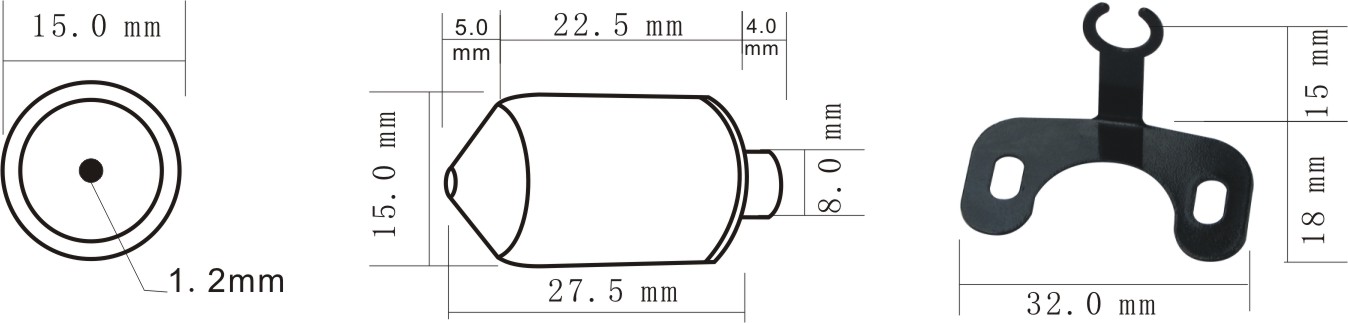

Outline Size:
Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio

Package:
Mini camera X1;
RCA or BNC cableX1;
AC adapter X1
