Wireless Underwater Fish Finder Mini Camera + 5inch 1.2GHz DVR Screen Monitor
The MINIAMFS200 is wireless video Underwater Fish Finder Camera system,it doesn't need any long cable for connection , and it is 1.2GHz wireless frequency real-time receiving. It include a wireless Underwater Fish Finder Camera, a fishing transmit float and a 5 inch LCD color monitor.
Features :
* wireless float with Underwater Fish Finder Camera design. * Visual Fishing new structure disconnect-type, it is easy to connect and disconnect with your existing fish wires. * 5 inch TFT color monitor built-in 1.2GHz video receiver, come with sun shield. * Over 30m wireless transmission distance for fishing. * Default lamp is 8pcs IR(infrared lamp) ensure wonderful fishing experience at days and nights. * Waterproof and durable aluminum alloy material on the camera body. * Lightweight and small size, which is very convenient for you to carry anywhere you want.
Specification:

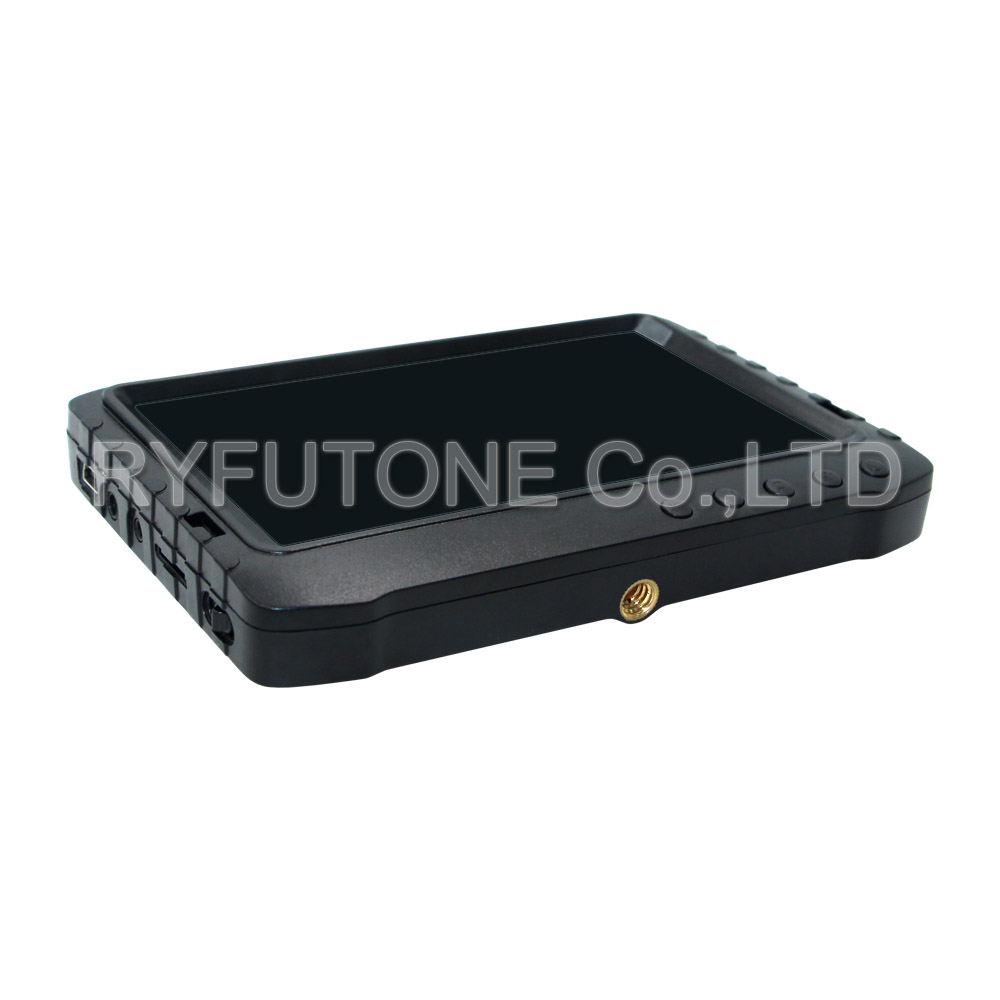

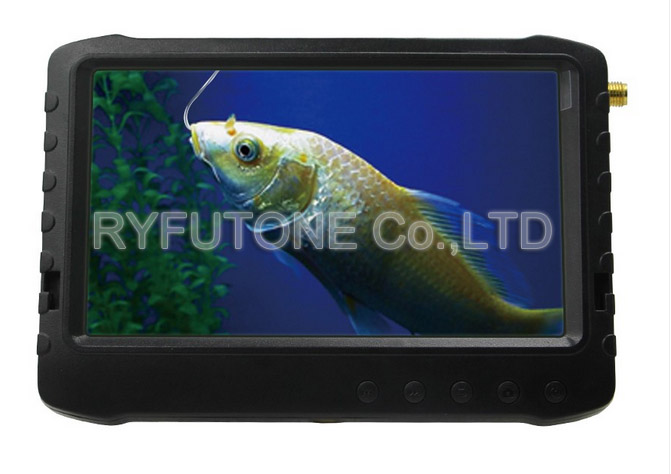

DVR Monitor |
Screen Size |
5inch£¬108mm*64.8mm |
Resolution |
800*480 pixel |
Built-in Receiver |
1.2Ghz 24ch |
Receiver Channels |
A1:1080 MHz£»A2:1120MHz£»A3:1160MHz£»A4:1200MHz A5:1240 MHz£»A6: 1280MHz£»A7:1320MHz£»A8:1360MHz |
Video in/ Video Out Format |
NTSC/PAL |
Brightness |
500cd/m2 |
Storage |
2-32GB |
Voltage/Current |
DC5V /660mA |
Power |
3200Mah Li-battery |
Working Time |
¡Ý6hours |
Other accessories |
removeable sun visor |

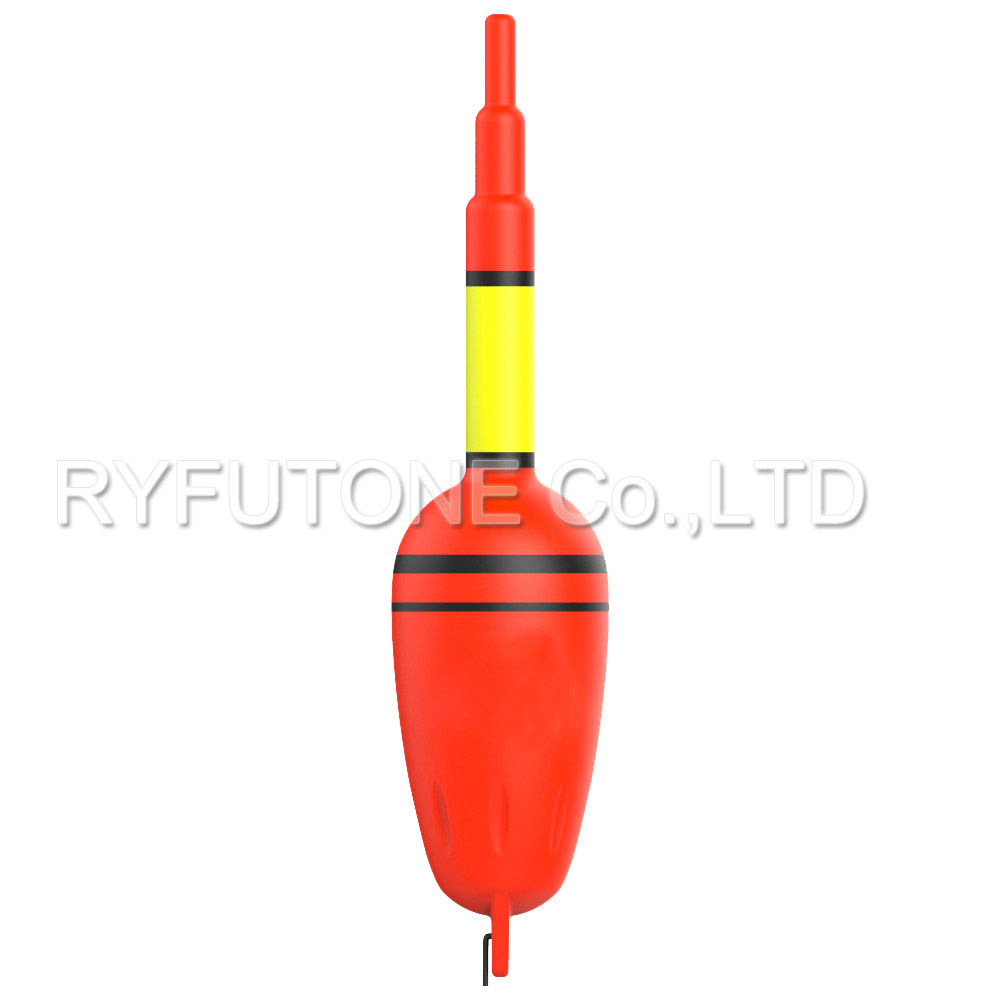

wireless float with underwater camera |
Camera Transmitter |
1.2Ghz 100mw built in the float |
The Cable between Tx to Cam |
2m |
Camera Size |
33*19mm |
Lens |
90¡ã lens |
Sensitivity |
0.008Lux |
Video Resolution |
720*576/720*480 |
Photo Resolution |
2.0MP |
Power |
720mAh Li-battery |
Working Time |
4 hours |
Voltage/Current |
3.6V/150mA |
Transmission Range |
¡Ý30m |
Package:

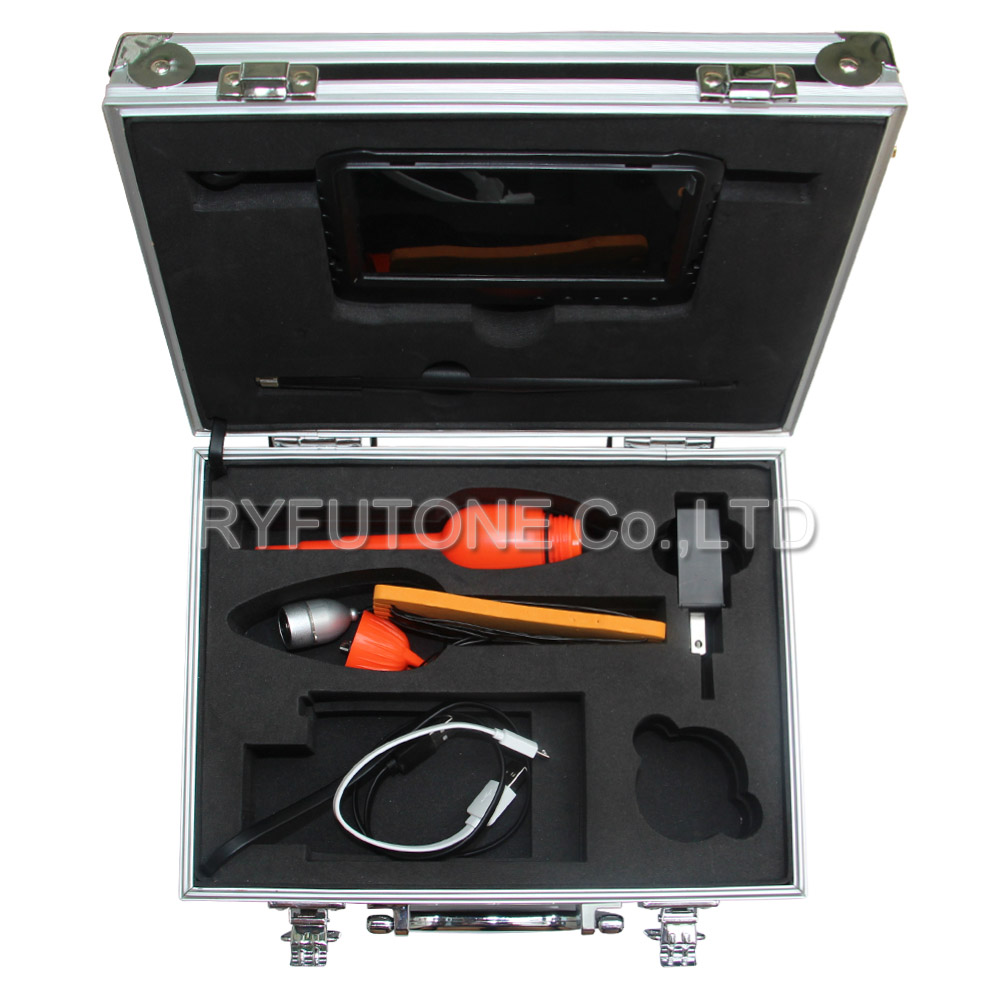

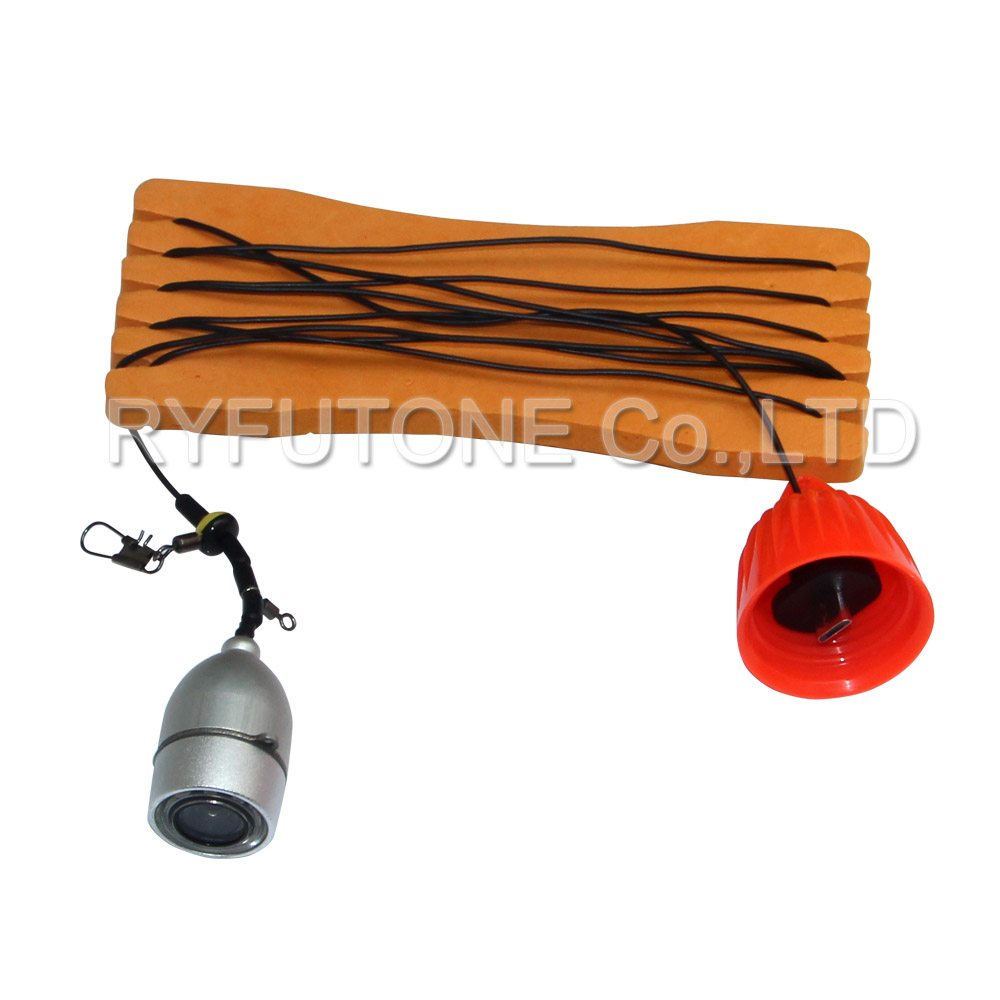

* 1 * aluminum alloy box * 1 * 5" inch LCD monitor * 1 * underwater camera * 1 * transmission float * 1 * antenna * 1 * charging cable * 1 * USB cable * 1 * AC adapter * 1 * Fishing swivels * 1 * 8 word ring * 1 * fishing space bean * 1 * winding board
|
