Mintone MTV-54G15P 10X optical Zoom Block Camera

*  10X optical zoom auto focus camera
*  1/4" COLOR ZOOM CCD CAMERA
*   Mintron MTV-54G15P 10X 1/4 COLOR ZOOM CCD CAMERA
*  ATW: Auto tracking white balance.
*  AWC: One push lock white balance.

Features:

MODELNO.		MTV-54G15N		MTV-54G15P
TV SYSTEM		NTSC		PAL
IMAGE SENSOR		1/4-inch CCD Image Sensor
CCD TOTAL PIXELS		~ 270K		~ 320K
SCANNING SYSTEM		525 lines, 60 fields/sec		625lines, 50 fields/sec
SYNC SYSTEM		Internal / External(VD-Lock / ±1Hz)
MINIMUMILLUMINATION	Legacy mode	1.5 Lux F1.8
	Star light Mode	0.05 Lux F1.8
RESOLUTION		380TVL
S / N RATIO		46dB ( MIN) / 50dB ( TYP ) (AGC OFF,r=1,APC OFF,Y-OUT)
WHITE BALANCE	Mode	AUTO (ATW or AWB)
	Range	3200 ~ 9600 ºK
B.L.C. FUNCTION		ON/OFF
GAMMA CORRECTION		0.45 /1
AGC		AUTO (24dB max
ALC		AUTO / FIX
IMAGE NEGATIVE		Select by OSD menu
MONITION DETECT		48 zone (select by OSD)
CROSS LINE		ON/OFF Select by OSD menu (position adj. by software)
FREEZE FUNCTION		Alarm in trigger or Select by OSD
ELECTRONIC SHUTTER		AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step
LENS		10X optical ZOOM LENS，F1.8~2.9，f=4.2~42.0mm
ZOOM		100X (10X optical 10X Digital)
FOCUS		Auto / Manual
POSITION		64 Position (Zoom，Focus)
VIDEO OUTPUT		Composite & Y/C output 1.0Vp-p at 75 ohm
CONTROL FUNCTION		Programmable RS-232 and RS-485 (*Driver Option) * RS-485 will be standard offer if not indicate one of driver options when Order.
OSD CONTROL		Zoom, Focus, IRIS, WB, AGC, Position, C-Gain, APC Gain
OSD LANGUAGE SELECT		ENGLISH / CHINESS_Simp / JAPANESE
OPERATION TEMPERATURE		-10℃ TO 50℃
OPERATIONAL HUMIDITY		within 85%RH
POWER SUPPLY		DC12V±1V / 3.6W(Max)

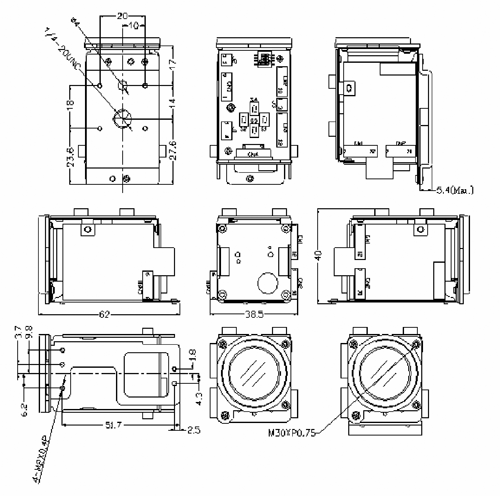

Dimensions :
