Mintron MTV-64G5DH 1/4 High Resolution DSP Color Zoom Camera

lightspot:

*  1/4" COLOR
*  520 TV LINES
*  OSD CONTROL PANEL
*  22X  MOTOR ZOOM. AUTO FOCUS. AUTO IRIS
*  FREEZE FUNCTION. CROSS LINE
*  ZERO COLOR ROLLING

ITEM:		DESCRIPTION:
Model No.		MTV-64G5DHN	MTV-64G5DHP
TV System		NTSC	PAL
Image Sensor		1/4-inch CCD Image Sensor
CCD Total Pixels		811(H) X 508(V)	795(H) X 596(V)
Scanning System		525 lines, 60 fields/sec	625 lines, 50 fields/sec
Sync system:		Internal / VD-Lock
Minimum Illumination：	Typical	1.5 Lux ( F1.6, 5600ºK) 50IRE
	Star Light Mode	0.07 Lux ( F1.6, 5600ºK ) 50IRE
Resolution：		520 TVL
S/N Ratio：		52dB ( MIN ) / 60dB ( TYP ) (AGC OFF)
White Balance:		ATW / AWC / FIX ( Zero color rolling)
White Balance Range:		3200---10000 ºK
B.L.C. Function:		Super BLC,48 zone BLC
Gamma Correction：		0.45 / 1.0
AGC		AUTO (18dB max)
ALC		AUTO / FIX
Image Negative:		Select by OSD Menu
Cross Line:		On/Off Select by OSD Menu (position adj. by software)
Freeze Function:		Alarm In Trigger Or Select By OSD
Electronic Shutter		AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step
Lens:		22X optical ZOOM LENS ,F1.6~3.8,f=4~88mm
		Diagonal	W(57º 38’) / T(2º 50’)
		Hor.	W(47º 31’) / T(2º 16’)
		Ver.	W(36º 32’) / T(1º 42’)
Zoom：		220X (22X Optical 10X Digital)
Focus：		Auto / Manual
Position：		64 Position (Zoom. Focus)
Video Output：		Composite & Y/C output 1.0Vp-p at 75 ohm
Control Function:		OSD control ,Dry Switch , RS-232C / RS-485(selectable , only one active / preset RS-232C)
Operation Temperature：		-10℃ TO 50℃
Operation Humidity：		ENGLISH / CHINESS_Simp / JAPANESE
Power Source：		DC 12V±1V / 3.6W (Max)

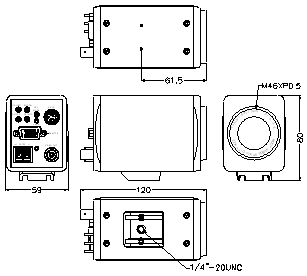

Dimensions		120 mm (L) X 59 mm (W) X 80 mm (H)
