Mintron MTV-64G5P 220X Color CCD Dightal Zoom Auto Focus Camera

Mintron MTV-64G5P 220X Color CCD Dightal Zoom Auto Focus Camera



Condition:New
Model:MTV-64G5P



* ATW: Auto tracking white balance.
* AWC: One push lock white balance.


MODEL NO. MTV-64G5N MTV-64G5P
TV SYSTEM NTSC PAL
IMAGE SENSOR 1/4-inch CCD Image Sensor
CCD TOTAL PIXELS 542(H) X 493(V) 537(H) X 597(V)
SCANNING SYSTEM 525 lines, 60 fields/sec 625 lines, 50 fields/sec
SYNC SYSTEM Internal / VD-Lock
MINIMUM ILLUMINATION Legacy mode 1 Lux ( F1.6, 5600ºK) 50IRE
Star light Mode 0.03 Lux ( F1.6, 5600ºK ) 50IRE
RESOLUTION 400TVL
WHITE BALANCE Mode ATW / AWB / FIX
Range 3200 ~ 9600 ºK
S / N RATIO 48dB ( MIN ) / 52dB ( TYP ) (AGC OFF£¬r=1£¬APC OFF£¬Y-OUT)
B.L.C. FUNCTION Super BLC,48 zone BLC
GAMMA CORRECTION 0.45 /1
AGC AUTO (18dB max)
ALC AUTO / FIX
IMAGE NEGATIVE Select by OSD menu
CROSS LINE ON/OFF Select by OSD menu (position adj. by software)
FREEZE FUNCTION Alarm in trigger or Select by OSD
ELECTRONIC SHUTTER AES: 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step
LENS 22X optical ZOOM LENS ,F1.6~3.8,f=4.0~88.0mm
ZOOM 220X (22X optical 10Xdigital)
FOCUS Auto / Manual
POSITION 64 Position (Zoom£¬Focus)
VIDEO OUTPUT Composite & Y/C output 1.0Vp-p at 75 ohm
CONTROL FUNCTION RS-232C/RS-485(selectable) , OSD control
OSD LANGUAGE SELECT ENGLISH / CHINESS_Simp / JAPANESE
COMMUNICATION BAUD RATE 9600 BPS
OPERATION TEMPERATURE -10¡æ TO 50¡æ
OPERATIONAL HUMIDITY within 85©‡RH
POWER SUPPLY DC12V¡À1V / 3.6W(Max)

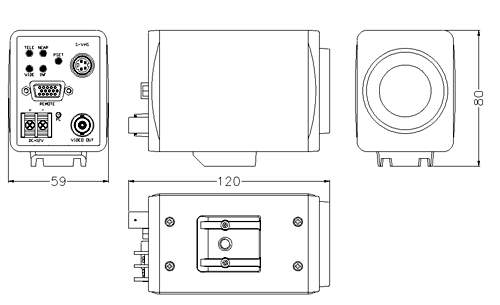

DIMENSIONS 120mm(L) X 59mm(W) X 80mm(H)
