Features:

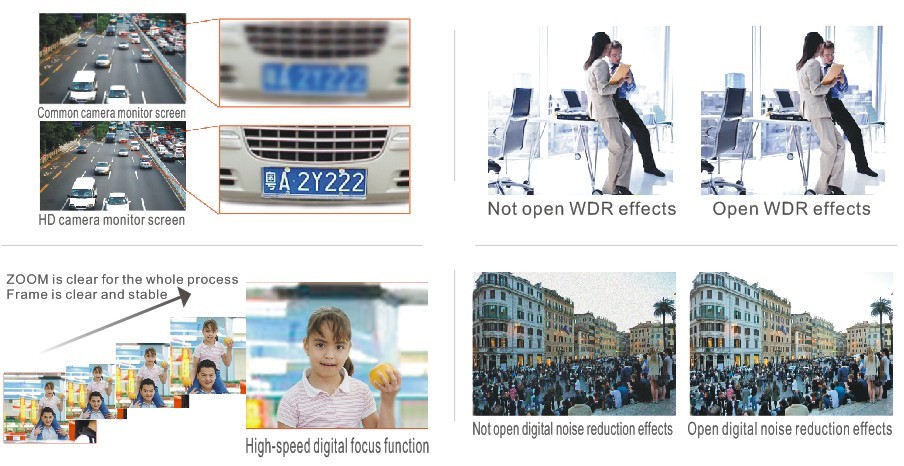

* 1/2.8" 2 Megapixel CMOS sensor * 20x zoom, F=4.7-94mm, F1.6-F3.5 * AF, AE,AWB control * International standard BT1120,SMPTE296M with YUV format, LVDS output * Flash light auto/off/manual * ISO: auto/manual * Auto slowly shuttle * ICR mode auto/manual * Support SONY interface * Auto AWB/Sunshine/cloudy/fluorescence/night
Specifications:
Model |
CER120NRT |
Detail |
2 Megapixel 1/2.8" CMOS HD Network Movement |
Sensor type |
1/2.8" SONY CMOS |
Scanning system |
Progressive scan |
Signal system |
PAL/NTSC |
Minimum illumination |
Color:0.05Lux @ (F1.6,AGC ON) B/W:0.01Lux @(F1.6,AGC ON) |
S/n radio |
>52dB |
Video output |
LVDS |
Resolution |
50HZ:25fps(1280x960) 60HZ:30fps(1280x960) 50HZ:25fps(1280x720) 60HZ:30fps(1280x720) |
Focus |
4.7-94mm,20 times optical |
Iris |
F1.6-F3.5 |
Horizontal viewing angle |
60-10¡ã(optics, wide-field) |
Close distance |
1m(optics,wide-field) |
Zoom speed |
About 3.2 seconds(optics,wide-field) |
Day and night mode |
ICR filter type |
Support agreement |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP, UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP/SRTP) |
Exposure mode |
Automatic exposure/Aperture-priority/Shutter priority/Manual exposure |
Outward interface |
30pin FFC (Network port,RS485,RS232,CVBS, SDHC,Alarm in/Out,Line in/Out,Power supply) |
Focus mode |
Auto / Manual / Auto zoom |
External communication |
SONY protocol |
Len initialization |
Built-in |
Gain |
3 degree adjustable |
Day night mode |
Auto / Color / Black and White |
Electronic shutter |
1/1S ~1/30,000S |
WDR |
On/off |
Backlight compensation |
On/off |
Exposure compensation |
On/off |
Dead pixel compensation |
Support |
Work environment |
-20¡æ ~ 70¡æ,<90%RH |
Power supply |
DC12V¡À10% |
Power |
Static 2.5W,Dynamic 4.5W |
Dimension(mm) |
48¡Á59¡Á85 |
Weight |
300G | |
