Model |

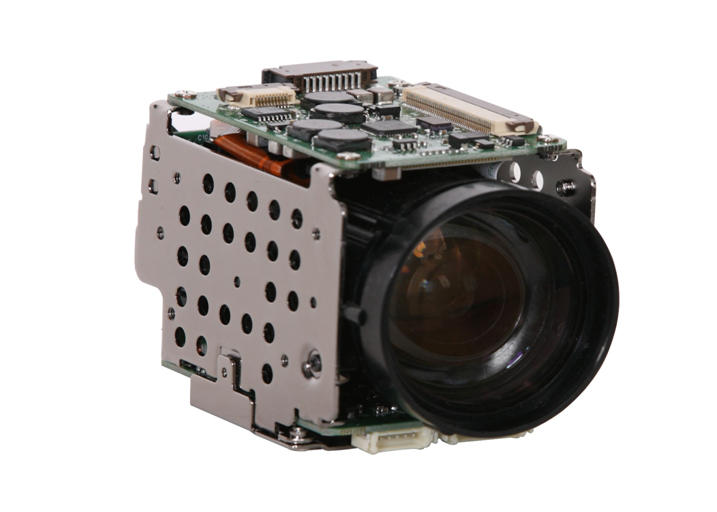

SDM-100 |
Power supply |
DC 9V to 12V (Recommend: 9V or 12V ) |
Power |
Static£º3.15W Sports £º4.5W |
DSP |
W3 |
CCD |
Size |
1/4 inch, Interline Transfer CCD |
Total Pixels |
795(H) x 596(V) |
Effective Pixels |
752(H) x 582(V) |
Optical |
Optical zoom |
10X, f=3.8 to 38mm(F 1.8 to 3.2) |
The minimum focus distance |
1000mm |
Digital Zoom |
Continuous 10x |
Maximum range observed |
Level: 51.2¡ã(nearly) to 5.58¡ã(far) vertical : 39.3¡ã(nearly) to 4.27¡ã(far) |
Synchronization |
Scanning system |
2:1 interlaced |
Synchronization |
Internal Synchronization /Outside synchronization |
frequency |
Level: 15.625 KHz / Vertical : 50.00 Hz |
Function |
Camera ID |
255 ID |
Resolution |
Color £º500 TVL Black-and-white£º570 TVL |
video output |
CVBS : 1.0Vp-p/75Ω |
SNR £¨S/N£© |
50 dB (AGC Off,Weight ON) |
minimum illumination |
Color : 0.7 Lux/F1.8 (50 IRE) Black-and-white : 0.02Lux/F1.8 (50 IRE) |
BLC |
High/ medium / low / OFF |
ICR |
Color to Black-and-white (ICR ) |
AGC |
Low / high / OFF |
WB |
ATW ( Indoor(3,000˚K~6,500˚K), Outdoor (1,800˚K~10,500˚K))/AWB /Manual |
Electronic Shutter |
Auto /Manual (X512 ~1/50sec ~ 1/120,000sec) |
Film speed |
X128 |
O.S.D |
Chinese or English |
Motion Detection |
On/Off (Outward output alarm signal) |
External control |
RS-485 or RS-232C CMOS Level (2400, 4800, 9600, 19200, 38400, and 57600bps Selectable) |
SSNR |
Low/medium/high is optional |
Focus |
Automatic/manual/one-time automatic focusing |
ZOOM SPEED |
1.75S £ºNearly burnt to telephoto |
Camera initialization |
Built in |
User the default |
8 group |
Privacy shelter |
Total 32 area£º8group£¬Each group with display four editable area) |
Rollover |
right and left /Up and down |
Freeze |
On/Off |
Iris control |
Manual/automatic |
Size |
38.9(W)¡Á43.7(H)¡Á61.67(D)mm |
working environment |
-10¡æ to +50¡æ / 20% to 80% RH |
Stored Environment |
-20¡æ to +60¡æ / 20% to 95% RH |
Weight |
96g |
