The Watec WAT-202D is one of the smallest and lightest CCTV box cameras available on the market. This makes it all the more surprising that the manufacturer was able to incorporate into its tiny frame most of the features and functions found on larger and heavier cameras. These include a 1/3" CCD sensor, an auto iris function as well as a full complement of electronic controls. Working in concert, these allow the camera to produce visible images in light levels down to 1.0 lux. This degree of low light sensitivity coupled with its incredibly small size makes it the camera of choice for residential or commercial applications looking for dependable yet minimally intrusive round-the-clock security monitoring. The WATEC WAT-202D high resolution low light solution color camera is utilized in the Medical Imaging, Military, and Law Enforcement Industries. The Watec WAT-202D's capability to adhere to five different light temperature ranges makes it adaptable to nearly every environment.

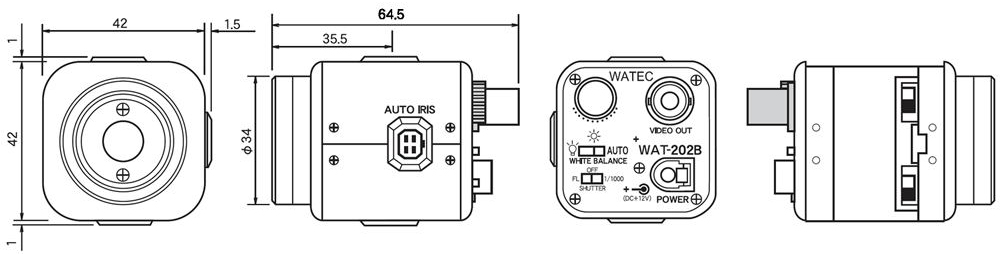

Ultra Compact & Lightweight Body With a total length of only 2.7" and weighing less than 7 ounces, this is one of the smallest and lightest full featured CCTV box cameras available on the market.
User Selectable Shutter Speed & White Balance Settings Two knob-type dials on the back of the camera allow a user to select the appropriate color temperature and exposure levels to suit a particular lighting environment.
Watec WAT-202D Features:
* 1/3" CCD * 450 Lines * 1.0 Lux * Auto Iris * Ultra Compact & Lightweight * Selectable White Balance * Selectable Shutter Speed
Watec WAT-202D Specifications:
Model |
WAT-202D |
image sensor |
1/3" CCD |
Sensing area(pixel) |
P440K |
Synchronizing System |
Internal Synchronization |
Scanning system
|
2:1 |
video output
|
1Vpp-75¦¸ |
Resolution (horizontal) |
450Lines |
Minimum illumination |
1.0Lux F1.2£¨AGC High£© |
Gain control |
Automatic gain control (dB) ON=8~36 (Hl) 8~24 (LO) OFF=8
|
S/N ratio |
46dB |
Gray properties |
¦Ã¨P0.45/1.0 |
BLC |
ON/OFF |
AES EI:OFF |
1/50~1/100,000 sec. EI:FL 1/120~1/100,000 sec. |
MES |
(S)OFF(1/50),1/250,1/500,1/1000,1/2000,1/4000,1/10,000 |
WB |
AUTO/Fixed /3200K£¬4200K£¬5100K£¬6300K |
Auto Iris Lens |
VIDEO/DC |
Mount |
CS |
Working Voltage |
DC+10V~15V |
working current (mA) |
150 |
Storage Temperature (¡æ ) |
-30~+70 |
Operating Temperature (¡æ ) |
-10~+40 |
Size W¡ÁH¡ÁL(mm) |
43.5¡Á44¡Á64.5 |
Weight(G) |
150 |
|
