Watec WAT-240F is a compact color camera which has flexible arm type and electronic iris. This compmact color camera ensures white balance control and back light compensation.
Watec WAT-240F Features:
* Watec WAT-240F Color Mini Camera
* Ultra-small cylindrical shape,
* Resolution 480Tvl,
* WAT-AVM by the controller to adjust the electronic shutter, gain, white balance and many other parameters,
* Focal length lens can be equipped with a variety of .
* Flexible-arm type
* Electronic iris
* White balance control
* Back light compensation
Watec WAT-240F Specifications:
| Model |
WAT-240F |
| image sensor |
1/4" CCD |
| Sensing area(pixel) |
P290K |
| Synchronizing System |
Internal Synchronization |
| Scanning system |
2:1 |
| video output |
1Vpp-75¦¸ |
| Resolution (horizontal) |
350TVL |
| Minimum illumination |
0.4Lux F2.0£¨AGC High£© |
| Gain control |
Automatic gain control(dB) ON=10~22 |
| S/N ratio |
46dB |
| gray properties |
¦Ã¨P0.45/1.0 |
| BLC |
ON/OFF |
| Auto electronic shutter EI:OFF |
1/50~1/100,000 sec.
EI:FL 1/120~1/100,000 sec. |
| MES |
(S)OFF(1/50),1/250,1/500,1/1000,1/2000,1/4000,1/10,000 |
| WB |
AUTO /Fixed /3200K£¬4200K£¬5100K£¬6300K |
| Auto Iris Lens |
VIDEO/DC |
| Mount |
CS |
| Working Voltage |
DC+10V~15V |
| working current (mA) |
160 |
| Storage Temperature (¡æ ) |
-30~+70 |
| Operating Temperature (¡æ ) |
-10~+40 |

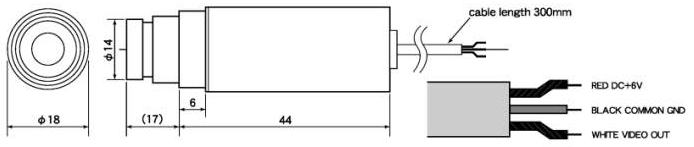

| Size W¡ÁH¡ÁL(mm) |
§¶18¡Á44+Lens |
| Weight(G) |
25 | |
