100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR

Do You Want to monitor if any unauthorised people is outside your House?
Do You Want To Know Who Come To Your House ?

Get The Door Peephole Camera Kit Now!!

*  No visible wires from the door's exterior, and exact same looking as original one,so the camera won't look suspicious;
*  Pure brass materia, it's noble and durable;
*  5.8G no-interference frequency, 100m wireless range;
*  Records video in high and low light(0.008lux) situations;
*  Wide-angle(90°) lens makes it easy to capture footage of a corridor;
*  5-inch large screen DVR playback Video instantly without connecting to computer;
* Motion Detection Available : Record Only when there is movement detected outside the Door (Replaced CCTV 24 Hrs Monitoring & Protect Home From Robbery);
*  No need any cable installation, just plug and play;
*  Support SD Card(up to 32G) recording for any evidence needed.

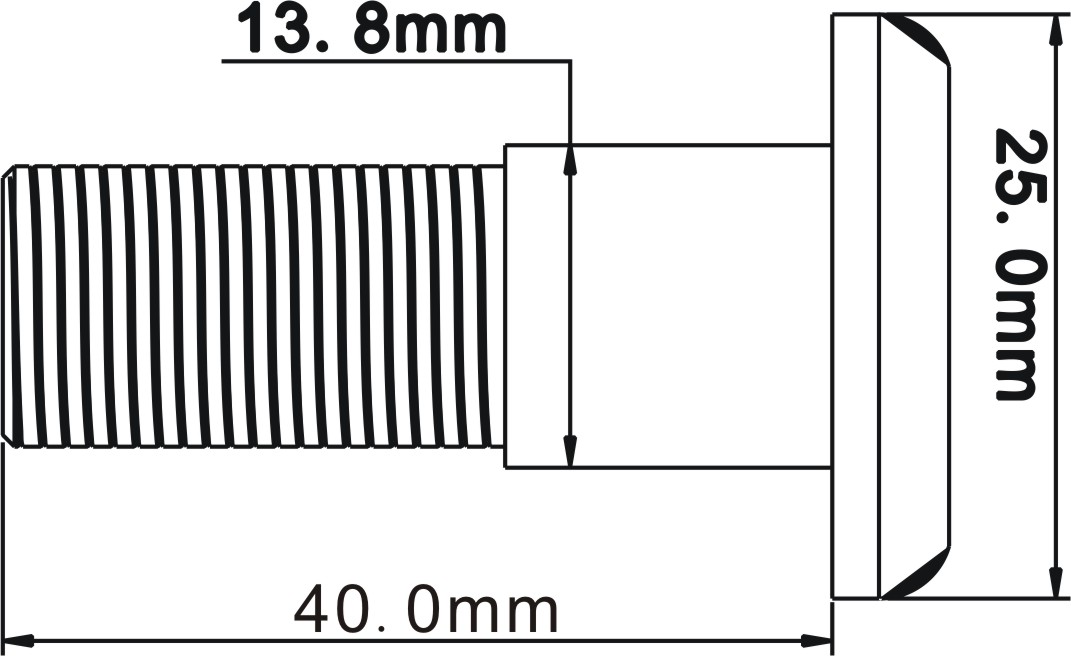

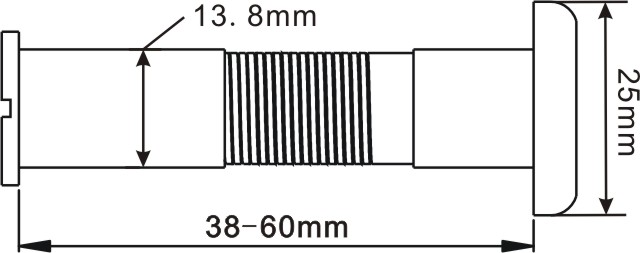

Outline Size of camera:

Specification:

* Camera:

Working frequency	G1-within 5.8G	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz			Working Channel: 1 of 24
	G2-Beyond 5.8G	CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
	G3-Within 5.8G	CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
Antenna		External antenna
RF OUTPUT POWER		25mW
TRANSMISSION RANGE		100 meters
SENSOR DIMENSION		NTSC：720（H）×480（V）		PAL：720（H）×576（V）
HORIZONTAL RESOLUTION		480TV Lines
SENSITIVITY		0.008Lux/F1.2
LENS & VIEW ANGLE		0.5mm F1.2 / 90 °
PEEPHOLE SIZE(L x D)		38-60mm X 14mm
WEIGHT（g）		20g
WORK CURRENT		230mA
POWER REQUIREMENT			DC 4V
OPERATING TEMPERATURE			- 20°C ~ + 50°C ，Relative humidity 85﹪

* 5-in HD Mini DVR:

Items			Value
Wireless Receiving	Wireless freq. (1 of 3 groups)
		Within 5.8G-A 8 channels	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
		Beyond 5.8G-B 8 channels	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
		Within 5.8G-C 8 channels	CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
	Sensitivity		-88dB
	Receiving distance		100 meters
AV IN	TV system		NTSC / PAL
	Output voltage		3.6-4.2 V
HD 5-inch LCD screen	Active area		108mm(W) X 64.8mm(H)
	Resolution		800 X 480 Pixel
	Luminance for LCM		200 cd/㎡
Cape clear 5-inch LCD screen	Active area		118mm(W) X 62.8mm(H)
	Resolution		480 X 272 Pixel
	Luminance for LCM）		300cd/㎡
Video	Resolution		720*576 / 640*480
	Video compress		MPEG-AVI 30fps
	Play format		MPEG-AVI
Audio	Frequency		20HZ-20KHz stereo
	Earphone Output		Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker		1W
Photo	Format		JPG/JPEG
Storage	External SD card		TF card 1GB-32GB（optional）
	32GB recording time		10-32 hours
	1GB photos		15625pcs
Operating system	PC		Windows & Mac OS
	Port		USB 2.0
	Language		Multiple
Power	Voltage		DC 5V
	Current(receiving mode)		660MA
	Current( recording mode)		680MA
	Current（recording with off-screen mode）		340MA
	AC adapter		DC 5V 2A
	Built-in battery		Li-battery 3200Mah
Standby time	Wireless record		≥9.5 hours(off-screen); ≥5hours（on-screen）
	Wired record		≥12 hours(off-screen); ≥6hours（on-screen） *LED camera not included.
Size (L x W x H)			131mm x 86mm x 18mm
Weight(g)			205G

Package:

1*Wireless Door Peephole Camera;
1*AC Adapter
1*DVR
1*cable
1*usb cable
1*AV input cable
1*AV output cable
1*manual
