F2.0 90deg 3.6MM 5.8G Wireless Mini Camera HD DVR Kit Mini Spy DVR Camera

This kit includes a very tiny wireless camera and a 5-inch LCD DVR, which adopt no-interference 5.8G frequency.It transmits 100 meters range. The size of camera is smaller than finger, which is suitable to install it into narrow and hard-to-reach room. Users can view the instant video on this 5 inch HD screen. They also can record videos and take pictures.Motion detect & loop recording are available for more convenience use.Just connect the camera to AV power supply ,it starts to continuous working.Just plug & play! It is a good helper for safe & security.

Main Features

1.  No-interference 5.8G frequency, no need to worry about interference from general 2.4G frequency;
2.  16 channels available, users can freely choose one when they use it;
3. 0.008LUX super low illumination, which can see clearly under dim light;
5.  90deg broad view angle;
6.  Low power consumption assures the long time working life;
7.  25mW transmitting power, which leads 100 meters wireless transmission range;
8.  High resolution 5-inch large screen DVR playback clear video instantly without connecting to computer;
9.  Motion Detection Available : Record only when there is movement detected(Replaced CCTV 24 Hrs Monitoring );
10. No need any cable installation, just plug and play;
11. Support SD Card(up to 32G) recording for any evidence needed;

How to use:

 Connect camera with power supply, it starts to work.  At the same time, power on DVR and set it in the same channel with camera.

Then real time audio & video begin to transmit from camera to DVR for view or recording or taking pictures.

SPECIFICATION of camera:

Working frequency	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CCH7: 5745MHz; CH8: 5725MHz CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
Audio Subcarrirer Level	-28dBc
RF OUTPUT POWER	25mW
TRANSMISSION RANGE	100 meters
Audio Subcarrirer Freq.ncy	6.5MHz
SENSOR DIMENSION	NTSC: 720(H) x 480(V)	PAL: 720(H) x 576(V)
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	3.6MM F2.0 / 90 deg

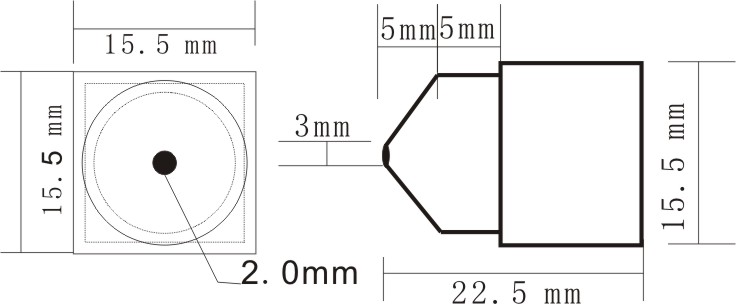

SIZE(L x W x H)	22.5 x 15.5 x 15.5 MM
WEIGHT(g)	10g
WORK CURRENT	230mA
POWER REQUIREMENT	DC 4V
OPERATING TEMPERATURE	- 20C ~ + 50C ,Relative humidity 85%

5-inch HD mini DVR:

Items			Value
Wireless Receiving	Wireless freq. (1 of 3 groups)
		Within 5.8G-A 8 channels	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
		Beyond 5.8G-B 8 channels	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
		Within 5.8G-C 8 channels	CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
	Sensitivity		-88dB
	Receiving distance		100 meters
AV IN	TV system		NTSC / PAL
	Output voltage		3.6-4.2 V
HD 5-inch LCD screen	Active area		108mm(W) X 64.8mm(H)
	Resolution		800 X 480 Pixel
	Luminance for LCM		200 cd/㎡
Cape clear 5-inch LCD screen	Active area		118mm(W) X 62.8mm(H)
	Resolution		480 X 272 Pixel
	Luminance for LCM		300cd/㎡
Video	Resolution		720*576 / 640*480
	Video compress		MPEG-AVI 30fps
	Play format		MPEG-AVI
Audio	Frequency		20HZ-20KHz stereo
	Earphone Output		Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker		1W
Photo	Format		JPG/JPEG
Storage	External SD card		TF card 1GB-32GB(optional)
	32GB recording time		10-32 hours
	1GB photos		15625pcs
Operating system	PC		Windows & Mac OS
	Port		USB 2.0
	Language		Multiple
Power	Voltage		DC 5V
	Current(receiving mode)		660MA
	Current( recording mode)		680MA
	Current(recording with off-screen mode)		340MA
	AC adapter		DC 5V 2A
	Built-in battery		Li-battery 3200Mah
Standby time	Wireless record		>=9.5 hours(off-screen); >=5hours(on-screen)
	Wired record		>=12 hours(off-screen); >=6hours(on-screen) *LED camera not included.
Size (L x W x H)			131mm x 86mm x 18mm
Weight(g)			205G

MODEL NO. & FREQUENCY:

wireless camera						5.8G wireless DVR
Channel Switcher				CH	Frequency	Freq. group	CH
1# ON	2# ON	3# ON	4# ON	CH1	5865MHz	5.8G-A	CH1
1# ON	2# OFF	3# ON	4# ON	CH2	5845MHz	5.8G-A	CH2
1# ON	2# ON	3# OFF	4# ON	CH3	5825MHz	5.8G-A	CH3
1# ON	2# OFF	3# OFF	4# ON	CH4	5805MHz	5.8G-A	CH4
1# ON	2# ON	3# ON	4# OFF	CH5	5785MHz	5.8G-A	CH5
1# ON	2# OFF	3# ON	4# OFF	CH6	5765MHz	5.8G-A	CH6
1# ON	2# ON	3# OFF	4# OFF	CH7	5745MHz	5.8G-A	CH7
1# ON	2# OFF	3# OFF	4# OFF	CH8	5725MHz	5.8G-A	CH8
1# OFF	2# ON	3# ON	4# ON	CH9	5705MHz	5.8G-B	CH1
1# OFF	2# OFF	3# ON	4# ON	CH10	5685MHz	5.8G-B	CH2
1# OFF	2# ON	3# OFF	4# ON	CH11	5665MHz	5.8G-B	CH3
1# OFF	2# OFF	3# OFF	4# ON	CH12	5645MHz	5.8G-B	CH4
1# OFF	2# ON	3# ON	4# OFF	CH13	5885MHz	5.8G-B	CH5
1# OFF	2# OFF	3# ON	4# OFF	CH14	5905MHz	5.8G-B	CH6
1# OFF	2# ON	3# OFF	4# OFF	CH15	5925MHz	5.8G-B	CH7
1# OFF	2# OFF	3# OFF	4# OFF	CH16	5945MHz	5.8G-B	CH8
