Watec WAT-631S Camera have 480TVL 0.1 Lx gain and high resolution of the lowest illuminance of gamma correction is optional. Excellent quality, are suitable for monitoring and image collection.
WATEC WAT-631C Camera Features:
* Watec WAT-631S * Resolution (horizontal): 480Lines, * Minimum Illumination (Lux): 0.1Lux F1.2 (AGC High), * Automatic automatic gain control (dB): ON = 8-36 OFF = 8, * SNR (dB): 50, * Gray Features: ¦Ã 0.45/1.0, * Backlight Compensation: ON / OFF, * Electronic shutter mode: EI 1/50-1/100, 000 sec.FL 1/120 sec. OFF 1/50 sec, * Automatic iris control: VIDEO / DC .
Watec WAT-631S Specifications:
Model |
WAT-631S |
image sensor |
1/3" CCD |
Sensing area(pixel) |
P440K |
Synchronizing System |
Internal Synchronization |
Scanning system
|
2:1 |
video output
|
1Vpp-75¦¸ |
Resolution (horizontal) |
480Lines |
Minimum illumination |
0.1Lux F1.2£¨AGC High£© |
Gain control |
Automatic gain control (dB) ON=8~36 (Hl) 8~24 (LO) OFF=8
|
S/N ratio |
50dB |
Gray properties |
¦Ã¨P0.45/1.0 |
BLC |
ON/OFF |
AES EI:OFF |
1/50~1/100,000 sec. EI:FL 1/120~1/100,000 sec. |
MES |
(S)OFF(1/50),1/250,1/500,1/1000,1/2000,1/4000,1/10,000 |
WB |
AUTO/Fixed /3200K£¬4200K£¬5100K£¬6300K |
Auto Iris Lens |
VIDEO/DC |
Mount |
CS |
Working Voltage |
DC+10V~15V |
working current (mA) |
150 |
Storage Temperature (¡æ ) |
-30~+70 |
Operating Temperature (¡æ ) |
-10~+40 |

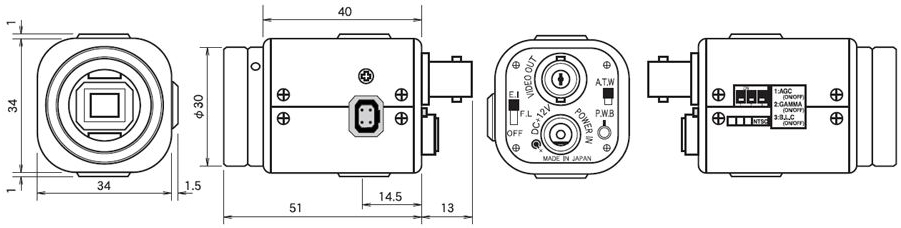

Size W¡ÁH¡ÁL(mm) |
35.5¡Á36¡Á64 |
Weight(G) |
90 |
|
